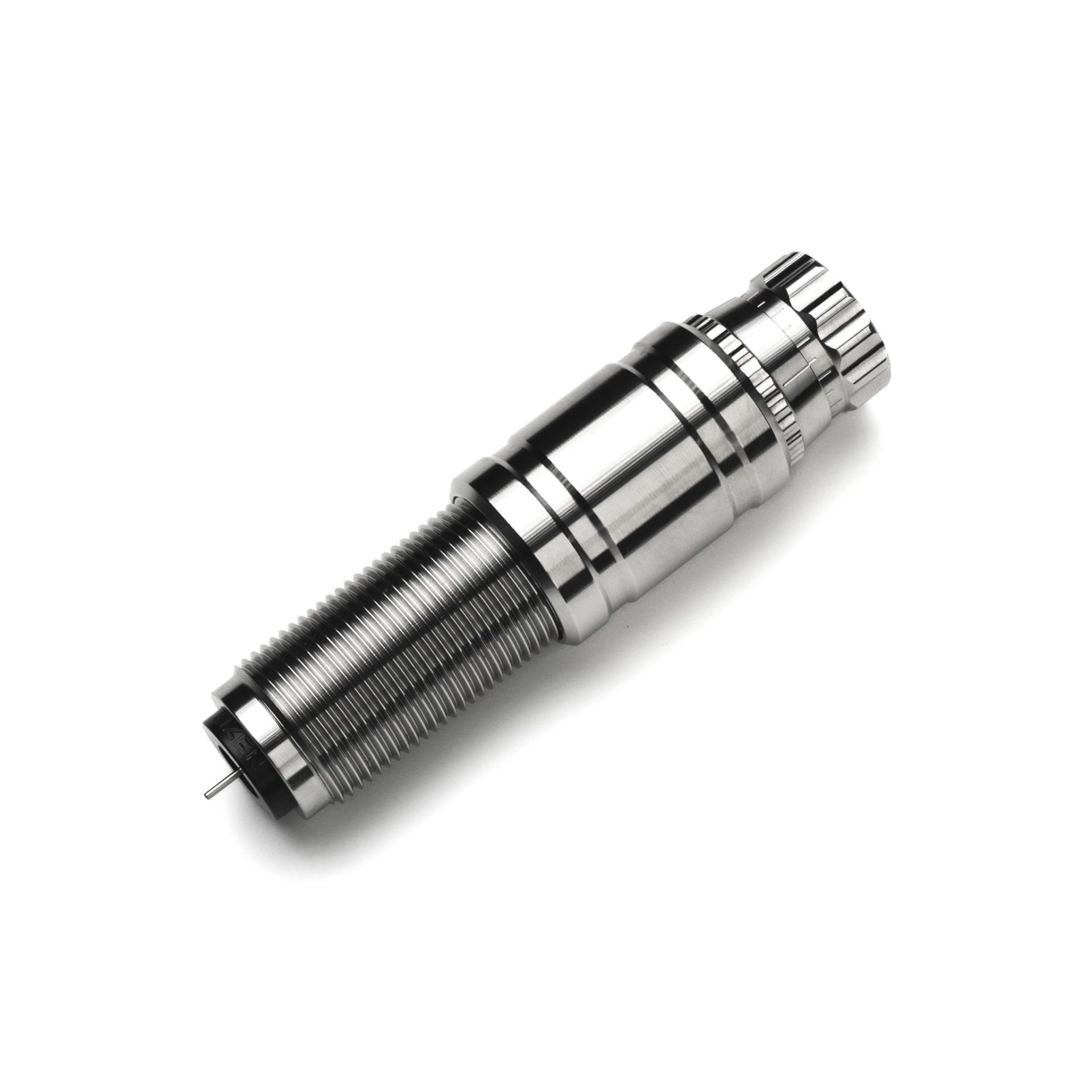

ZERO M-Series Sizing Dies
$450.00 – $725.00
At this time, dies are ONLY shipping with ZERO M-Series Shellholders. If you are using any other ram-style press, you will need a “Traditional M-Series Shellholder” available HERE
If you have one of our existing headspace-adjustable shellholder kits, it WILL NOT work with the M-Series die, as this die requires a large-diameter shellholder. That kit will be very useful with the S-Series die, coming in 2024.

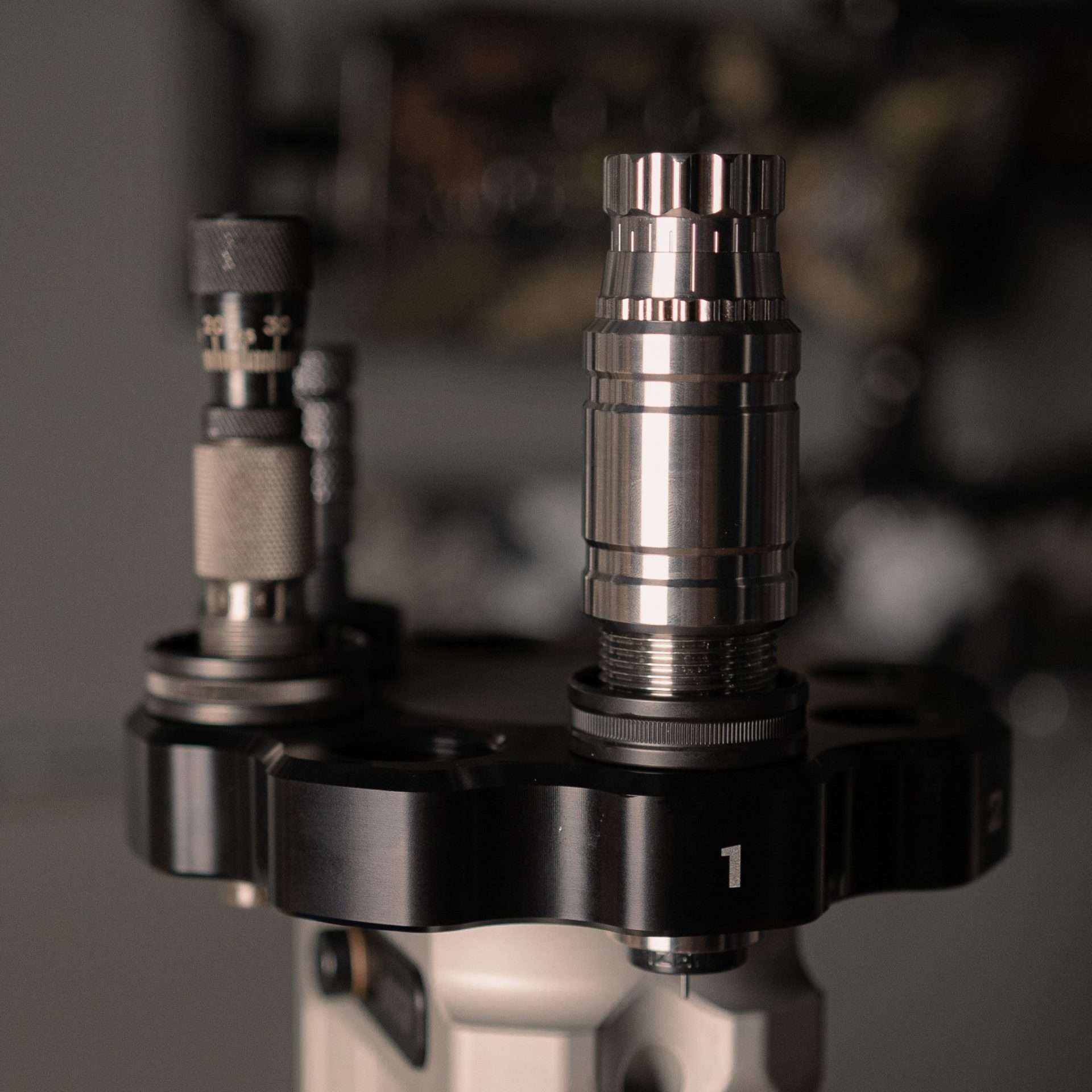

This is a 1-1/4″ die, and requires a Hybrid or 1-1/4″ Turret on your ZERO (or other press). It CANNOT be used with a 7/8″ Turret or other 7/8″ press.
IMPORTANT NOTE – THESE DIES ARE NOT COMPATIBLE WITH STANDARD SHELLHOLDERS, AND REQUIRE A LARGER DIAMETER SHELLHOLDER RIM. IF YOU DO NOT HAVE A ZERO M-SERIES SHELLHOLDER, YOU CANNOT USE THIS DIE. TO ORDER ONE FOR YOUR ZERO OR TRADITIONAL RAM-STYLE PRESS, CLICK HERE

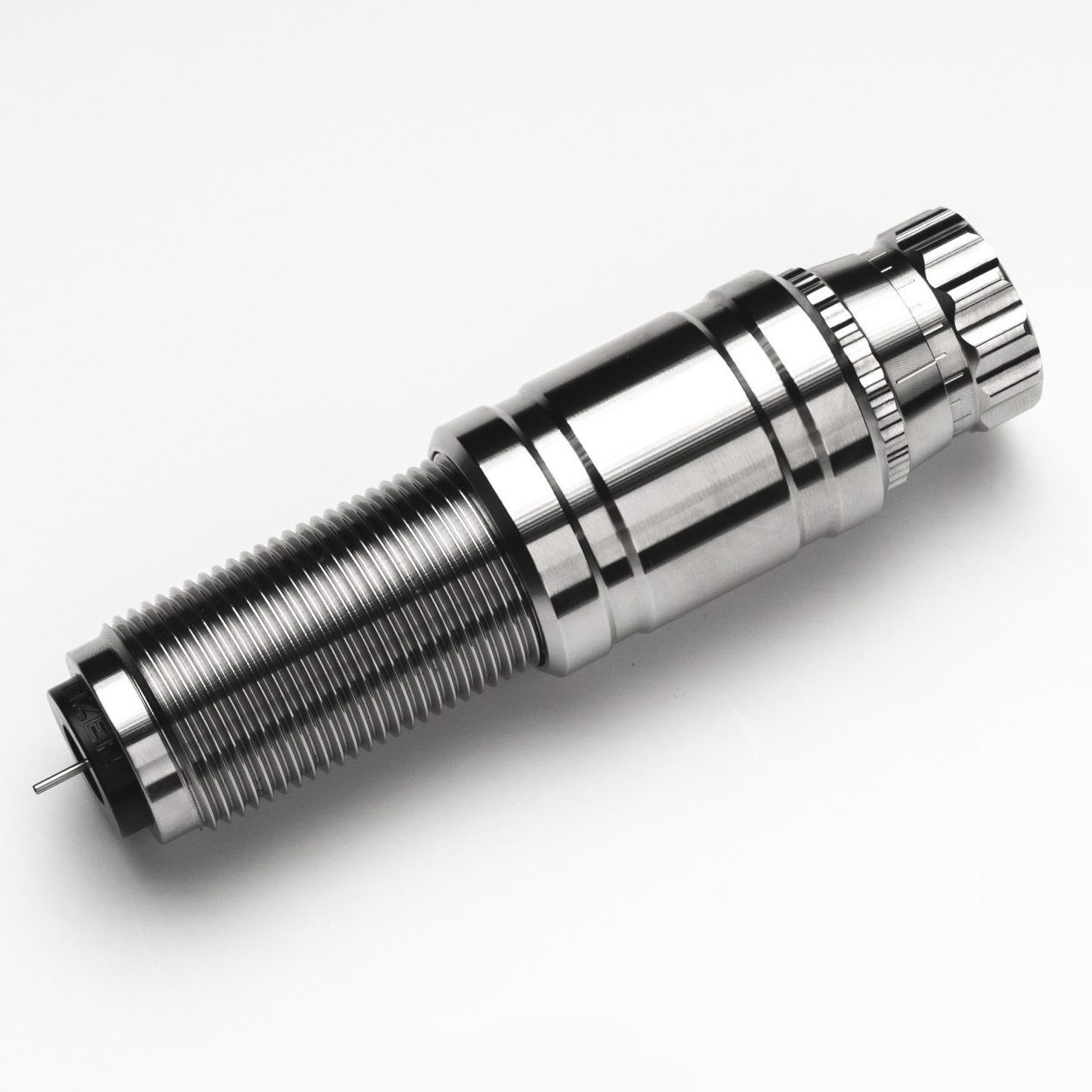

The ZERO M-Series Sizing die is the culmination of years of testing, research, trial, error, frustration, and finally, discoveries.
As Reloaders, we knew we needed a die to do certain things, but as the makers of the ZERO Reloading Press, we also learned a huge amount about what other dies did well or did poorly, and what our customers were struggling with on a daily basis.
With the ZERO M-Series Sizing Die, we think we have produced a sizing die that is capable of producing the finest, match-grade ammunition, as well as being user-friendly to new and learning reloaders.
Sizing brass doesn’t have to be complicated. It doesn’t have to require years of trial and error. It just needs equipment, made with the end-user in mind, designed with the understanding that a die is part of an ecosystem of parts. A press, a die, the brass, the rifle – they all have to work together and be designed with one another in mind. This is that. Introducing, the ZERO M-Series Sizing Die.
KEY FEATURES
- Micrometer Adjustable Headspace/Shoulder Bump
- Precision Ground Expander Mandrels (all dies ship with a .002 neck tension mandrel, or add more increments with our MANDREL KIT)
- Full-Length Neck to Extractor Sizing
- Spring Ejection for Spent Primers
- Replaceable Steel Decap Pins
- Reamer Cut to Exacting Dimensions for a TRUE Size (no more sticky bolt after the second firing)
- Hydraulic Shoulder Pressure Relief
- 100% Made in AMERICA

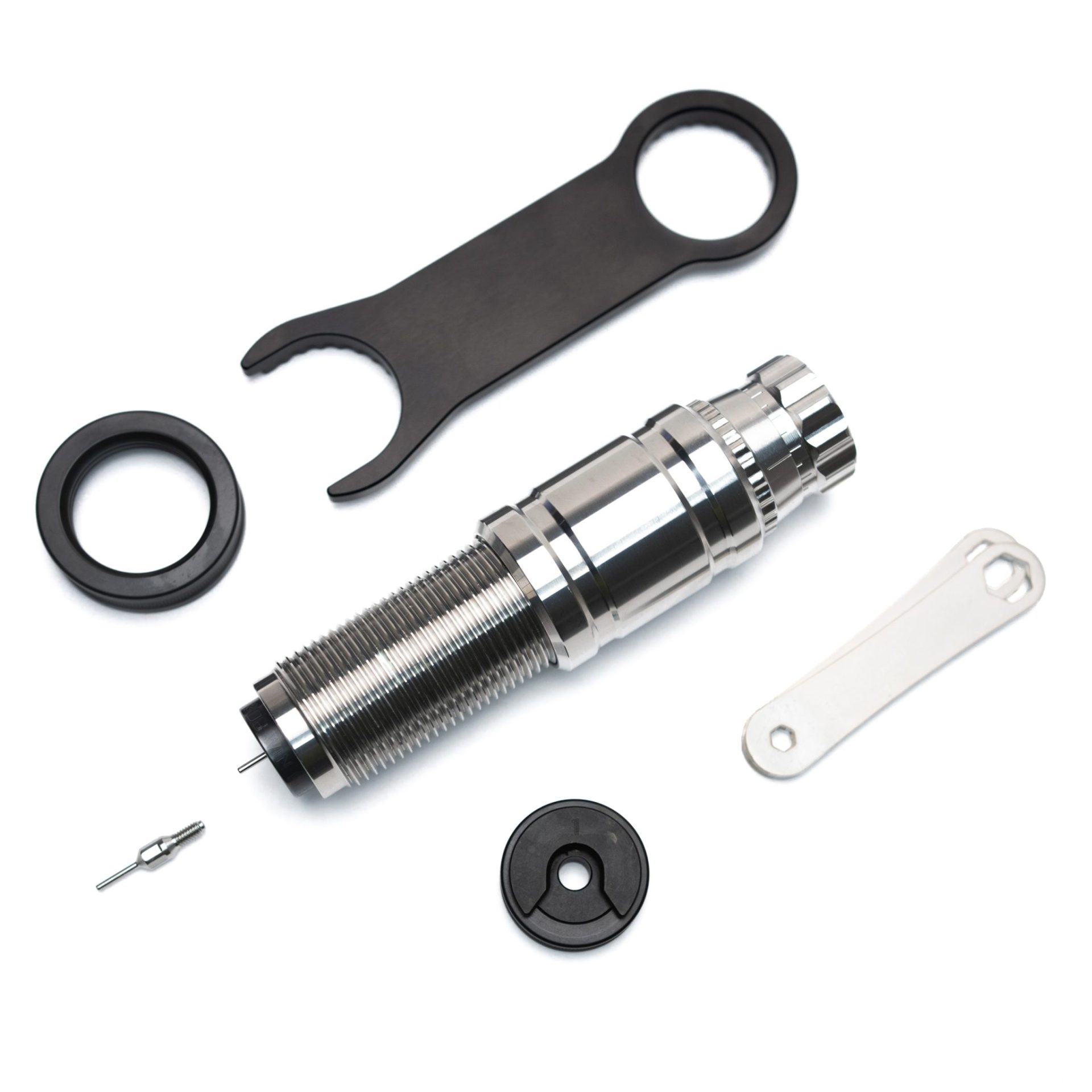

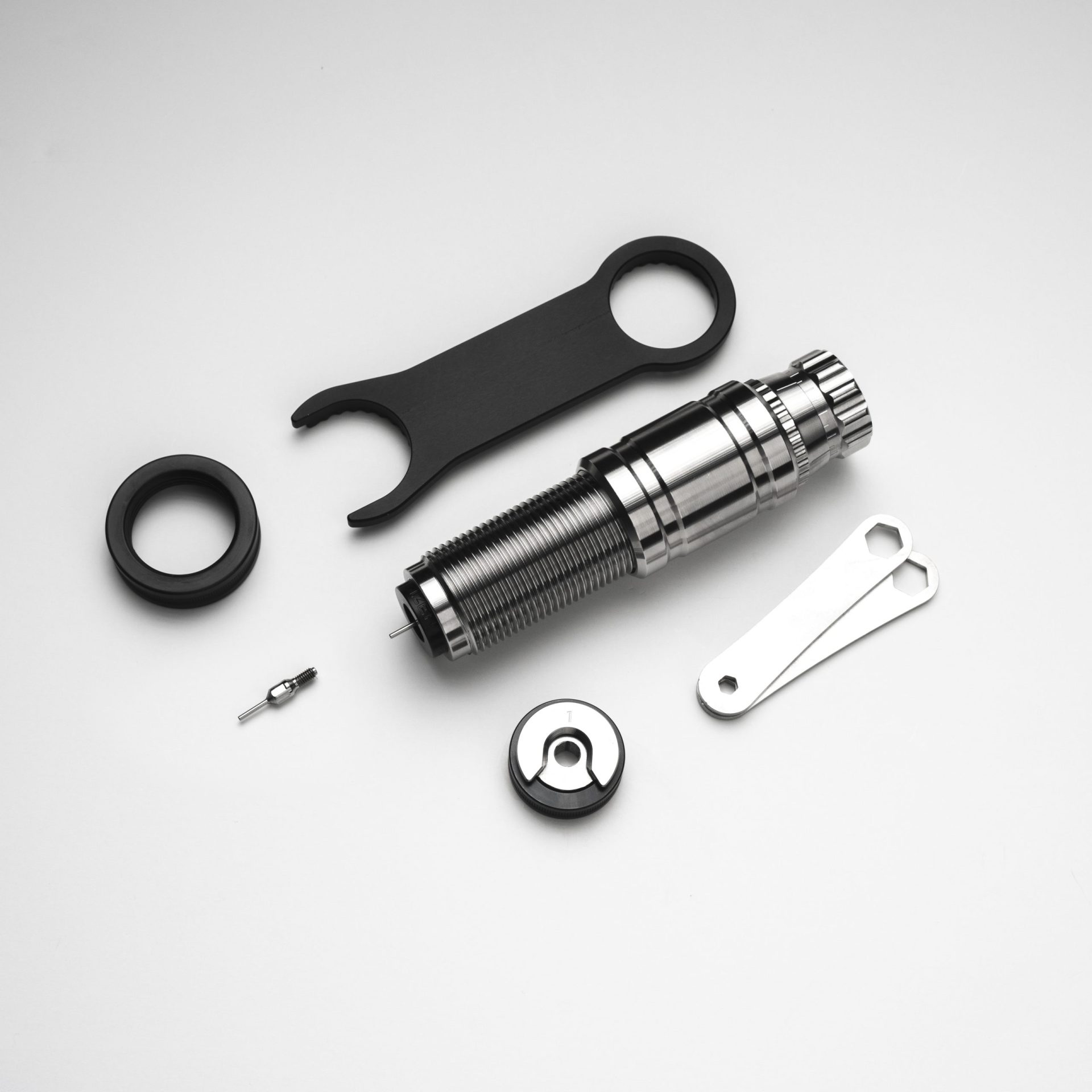

All dies ship with an Area 419 ZERO Die Ring, a spare decapping pin and necessary install/removal tools.
After testing them all, and finding everything we like and didn’t like, and working with thousands of customers and a variety of industry partners, we believe this is what a sizing die should be. We think you’ll agree.
| Weight | 3 lbs |
|---|---|
| Dimensions | 9 × 6 × 2 in |
| Caliber | 223 Rem, 22 GT, 22 Creedmoor, 6 BR, 6 Dasher, 6 GT, 6 Creedmoor, 6.5×47, 6.5 Creedmoor, 6.5 PRC, 7 PRC, 308 Winchester, 300 PRC |
| Package | Die w/ Shellholder, Die ONLY, Die, Shellholder, and Hybrid Turret |
74 reviews for ZERO M-Series Sizing Dies
Related products
John C. (verified owner) –
Highest quality. Exactly what you expect from Area419
Spencer H. (verified owner) –
Awesome product and makes sizing a breeze
bruce (verified owner) –
None
Gudmundur Sigurdsson (verified owner) –
Perfect pro
Richard (verified owner) –
Amazing product so much detail I thought it was pricey until it arrived
Kenneth (verified owner) –
works great on my 308cal. cases
Thomas (verified owner) –
Great product. Like to see a 6mm BRA in the future
Aaron T. (verified owner) –
Fit and function are amazing. Still learning about all the features but this makes resizing predictable!
Spencer (verified owner) –
Most aesthetically pleasing die I’ve ever seen! And it works better than it looks!
George or Pam Toon (verified owner) –
Can’t wait to use it.
Úlfar Svavarsson (verified owner) –
Great
Delbert (verified owner) –
The price really made be pause for a min. I have tried many different dies over the years. When I put the Zero press and these M Dies together. It is so simple to get the bump I want .002 and it happens ever time. I have purchased 3 of these dies so far. I would not spend my money on them if they were not the best sizing dies I have ever used in my life.
Ryan (verified owner) –
Best die I’ve encountered. The bump is consistent every time.
Michael J (verified owner) –
This is my third ZERO sizing die from 419. I am delighted with the quality of these item. Neck run out is a never greater than 0.001 and is usually much less. I contrast this with a different high end sizing die from another vendor that always yielded runout that varied from 0.001 to 0.005. Grab a zero press and these dies and up your game!
Tim O. (verified owner) –
Love the die. Near 0 run out and the adjustable shoulder bump creates near perfect reloads.
Daniel Devling (verified owner) –
Very solid die. Have not used but three or four times.
Matthew S. (verified owner) –
An excellent piece of premium reloading equipment that is very easy to use, and backed by an excellent customer service team. I liked the first one enough I purchased a second
William Teel, Ph.D. (verified owner) –
Very nice design. Used Redding before. Only wonder if carbide bulb might help on the upstroke.
Michael J T. (verified owner) –
Purchased my second set of these dies, they are terrific, providing uncontested accuracy in sizing brass!
Christopher (verified owner) –
Yes this die is expensive, but it is well worth the money. Skipping the separate mandrel step in my reloading is a good time saver and the die is built like a tank. I will by another caliber for sure
Joseph Shields (verified owner) –
what a time saver!
what consistency!
Anonymous (verified owner) –
Definitely increased the consistency and performance of my hand loads
Sandy S. (verified owner) –
This is my 2nd M-Series die and love how it is easily my go to setup for 6.5 cm and now my 22 cm.
Joe Shields (verified owner) –
Haven’t used this die. Still waiting on gun
Timothy (verified owner) –
Consistent repeatability is amazing!
Raymond Tackett (verified owner) –
Exactly what you would expect from people that enjoy their jobs!!!
Weston Hickey (verified owner) –
I’ve got every other die and press you can think of…SAC dies and the new Nexus press, Micron, custom reamed dies, Forester, Redding, Whidden. Nothing bumps shoulders near as consistently as these do. I’m +/- 0.0005 99% of the time (own the 300 PRC, 7 PRC, Dasher, and 6 CM flavors). The only major problem is that they don’t make one for the 300 Norma ;).
Ray B. (verified owner) –
Buy once cry once. Everything Area 419 touches is pure Gold
Alan Mcgovern (verified owner) –
The best full length sizing die period.
Michael L. (verified owner) –
This shit is solid, heavy, and so far easy to use. Can’t ask for more it’s dead on.
Alan Mcgovern (verified owner) –
Works great, love it.
Aaron R. (verified owner) –
I have not had a chance to chronograph any of the loads yet, but shoulder bump is coming out within .0005 every time. The micrometer adjustment is absolutely perfect. Also the annoying results with other does not sizing down the case to the web far enough is a non issue. The case comes back into spec perfectly. These dies are easy to set up but make sure you watch the video on YouTube.
Jerry Hanks (verified owner) –
I sized 100 pieces of brass and every piece was .002-.003 shoulder bump…
Joe Ben O’Quinn (verified owner) –
Perfect
Thomas Haines (verified owner) –
love the accuracy them, the only reason the other dies are on the press is the 6.5prc and the 300prc dies are on backorder.
James H. (verified owner) –
The Zero press and these dies are like comparing a Mustang to a Bugatti.
Area 419 being the Bugatti!
Travis c. (verified owner) –
Best dies out there
Brian B. (verified owner) –
Still waiting on my Zero press, turret, and accessories which are backordered from Brownells.
The dies are a work of art.
Can’t wait to play with them.
Herman Potgieter (verified owner) –
Brilliant products
Anonymous (verified owner) –
Excellent. No other comments.
Robert Merulli (verified owner) –
It is a great product. I have 3 different caliber of them but I wish I could of bought them when they were on sell.
Roy Joffrion (verified owner) –
Very tight tolerances amazing craftsmanship
Christopher Durham (verified owner) –
Amazing pc of machinery,the hydraulics and all and it touches every part of my brass smoothly.
Sean Waldron (verified owner) –
Wow, very easy to dial in to your needs. Can’t wait for some of the larger sizes to be a viable. 308 win, 300 Norma mag.
Dennis R. (verified owner) –
Wish these M dies were out years ago. I would not have bought any other ones. These are buy far the nicest dies I have ever owned and used. The quality is unequal. The zero press and the M dies are a perfect match. Thank you area 419
ALEJANDRO Z. (verified owner) –
Quality Die and excellent partner of Zero press !
Dennis Roberts (verified owner) –
Wow, these are great sizing dies. Best I have ever owned. Need to get more of these for they are definitely worth the price.
Eric B. (verified owner) –
Have not used them yet, but they do seem to be built well! I look forward to using them. Bad thing is I have to wait until Christmas. Bought myself a present!
mike plunkett (verified owner) –
Highest quality die I’ve ever owned!
Verified Buyer (verified owner) –
If you need a reloading die, these are the ones you need to get.
Zachary H. (verified owner) –
Cutting edge
Don Lepard (verified owner) –
setup is easy and consistency is insanely accurate
Alejandro Rodriguez Wilkes (verified owner) –
Amazing quality and works perfectly. Easy to setup and looks awesome.
Ronald Blatt (verified owner) –
High quality product
Adam (verified owner) –
Don’t sleep on these. Buy them
John Cartwright (verified owner) –
I now have the M series dies for 6MM Creedmoor, 6.5×47 Lapua, 6.5PRC, and 6.5 Creedmoor and live them all. Extremely east to set up and adjust finite shoulder bump, very consistent neck tension, all around quality product like all of their products.
neale white (verified owner) –
well made and works well
Sandy S. (verified owner) –
If you haven’t actually seen it in person you can’t imagine how beautiful and well made it is. Even the packaging is amazing. Can’t wait to load my first batch of ammo. I’ll update review after that.
CHRISTOPHER S. (verified owner) –
Precision is ridiculous
Adam (verified owner) –
This is everything and more. Easy setup. The YouTube video 419 posted answers all the questions.
Bryce Hafen (verified owner) –
The best die out on the market
Michael May (verified owner) –
This is absolutely the best sizing die on the market! So constant and easy to set up!
The only reason for the 4 is the cost. Not just the die but also another turret to use it. The die is so good I have already ordered another one.
Chris Baxter (verified owner) –
HMMMM DONT WAIT AND PONDER, GET IT, WILL SOLVE ALL YOUR PROBLEMS
Andy Lewis (verified owner) –
Finally a well designed die that does exactly what it supposed to accomplish, resizing without overworking the brass.
John Cartwright (verified owner) –
These are not cheap but worth every penny. Different method for neck tension but very accurate and repeatable. Love them!
JOEL JAIMES (verified owner) –
Pretty precise..! Love it
Tim Musselman (verified owner) –
Takes all the guesswork out of sizing cases, micrometer headspace is great!
Josh V. (verified owner) –
This die is like a jewel. It’s massive and sturdy. Packaging is exceptional. Set up and adjustment is very easy. The micrometer head allows for easy headspace adjustment. The sizing sleeve is very tight and the brass is sized all the way down to the case head. Initially almost had a few stuck cases using Imperial sizing wax. Once the die breaks in, this will smooth out. Can’t wait to see how the groups perform. I use this die with the Zero. It will be nice to eventually have different sizing sleeves.
Robert Wyatt (verified owner) –
Finally, the easy and consistent way to adjust shoulder bump is born. This die is a beast!
John Mallett (verified owner) –
Like jewelry
Trevor Cunningham (verified owner) –
Another top tier product by 419. Looking forward to additional calibers!
Robert Jensen (verified owner) –
Everything these guys make is next level
John G. (verified owner) –
THIS IS REALLY FANTASTIC. I’VE REDUCED THE NUMBER OF SEPARATE STEPS IN BRASS PREP FROM 5 TO 1. PERFECT CONTROL OVER THE SIZING PROCESS. CAN’T WAIT TO SEE WHAT YOU DO WITH A SEATING DIE!! WHEN???
Scott (verified owner) –
Freaking awesome die!!!
