Home / Parts and Accessories / ARCA Rails and Accessories

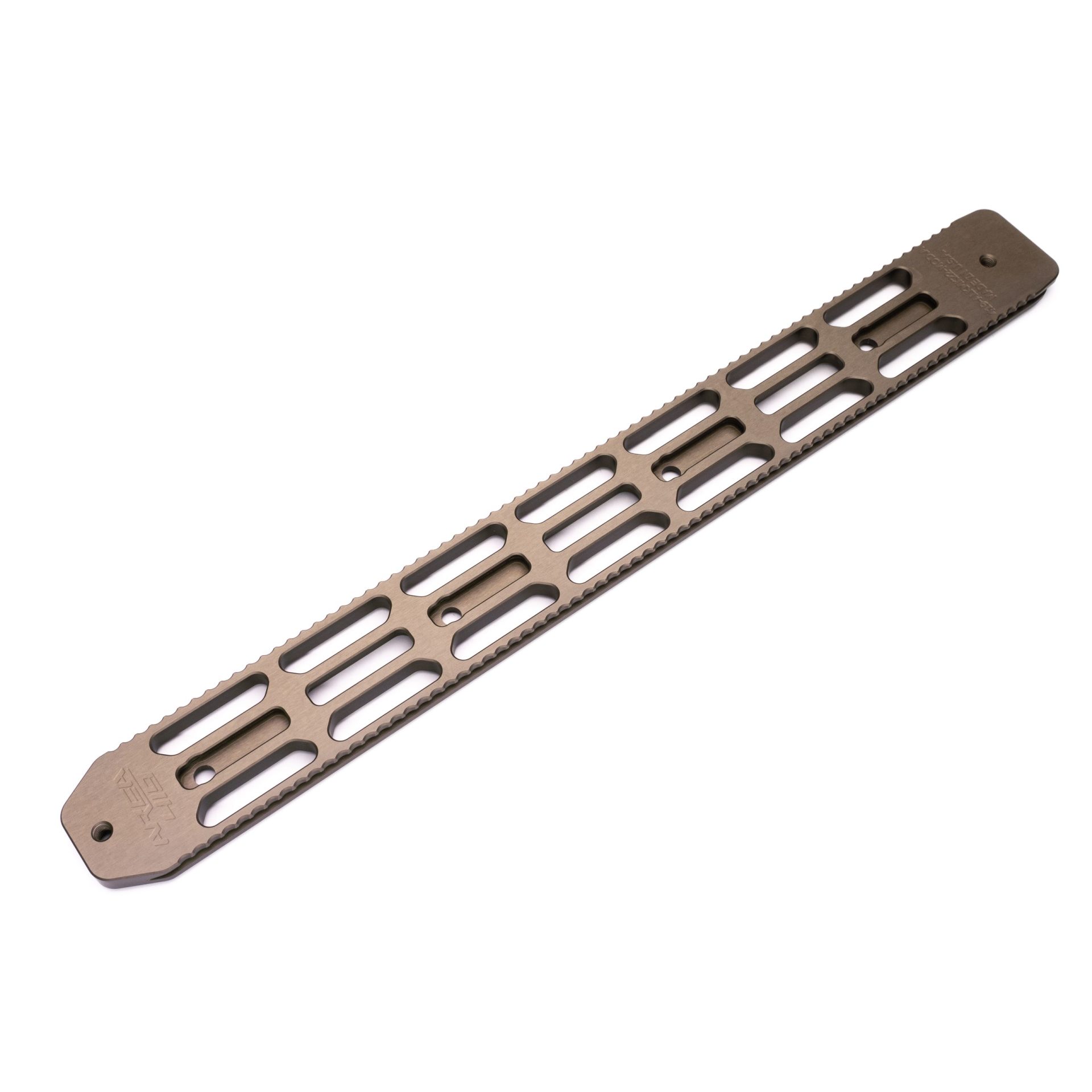

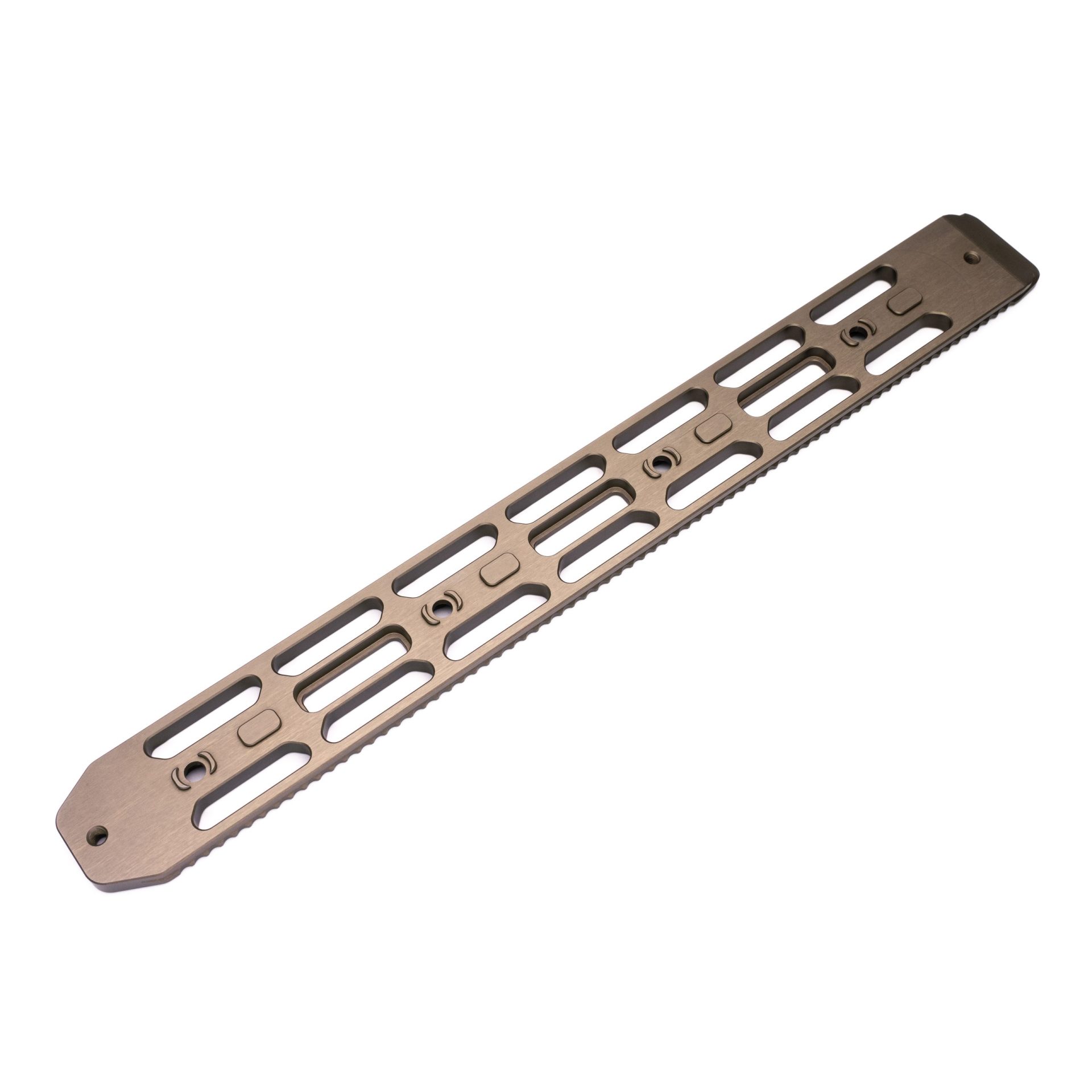

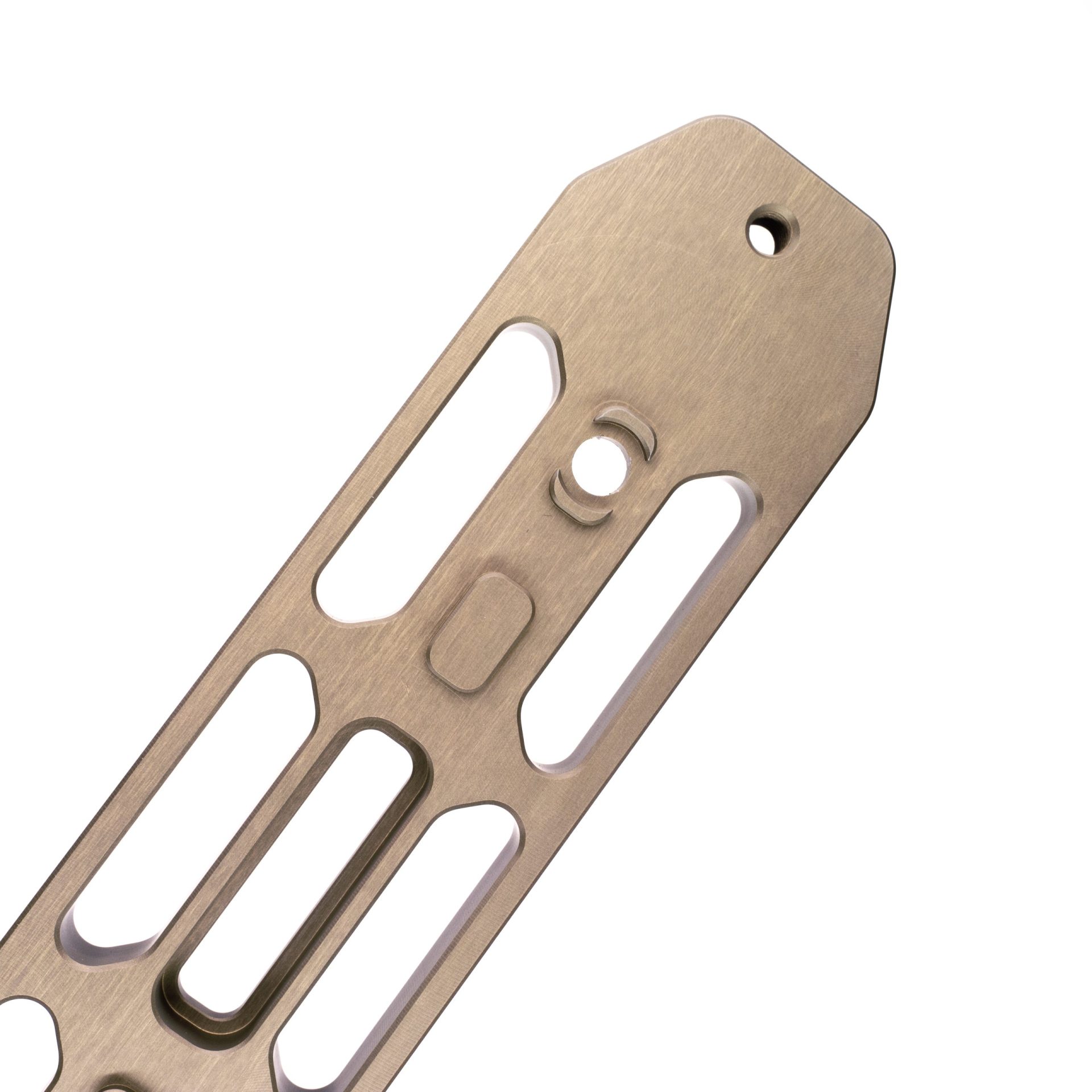

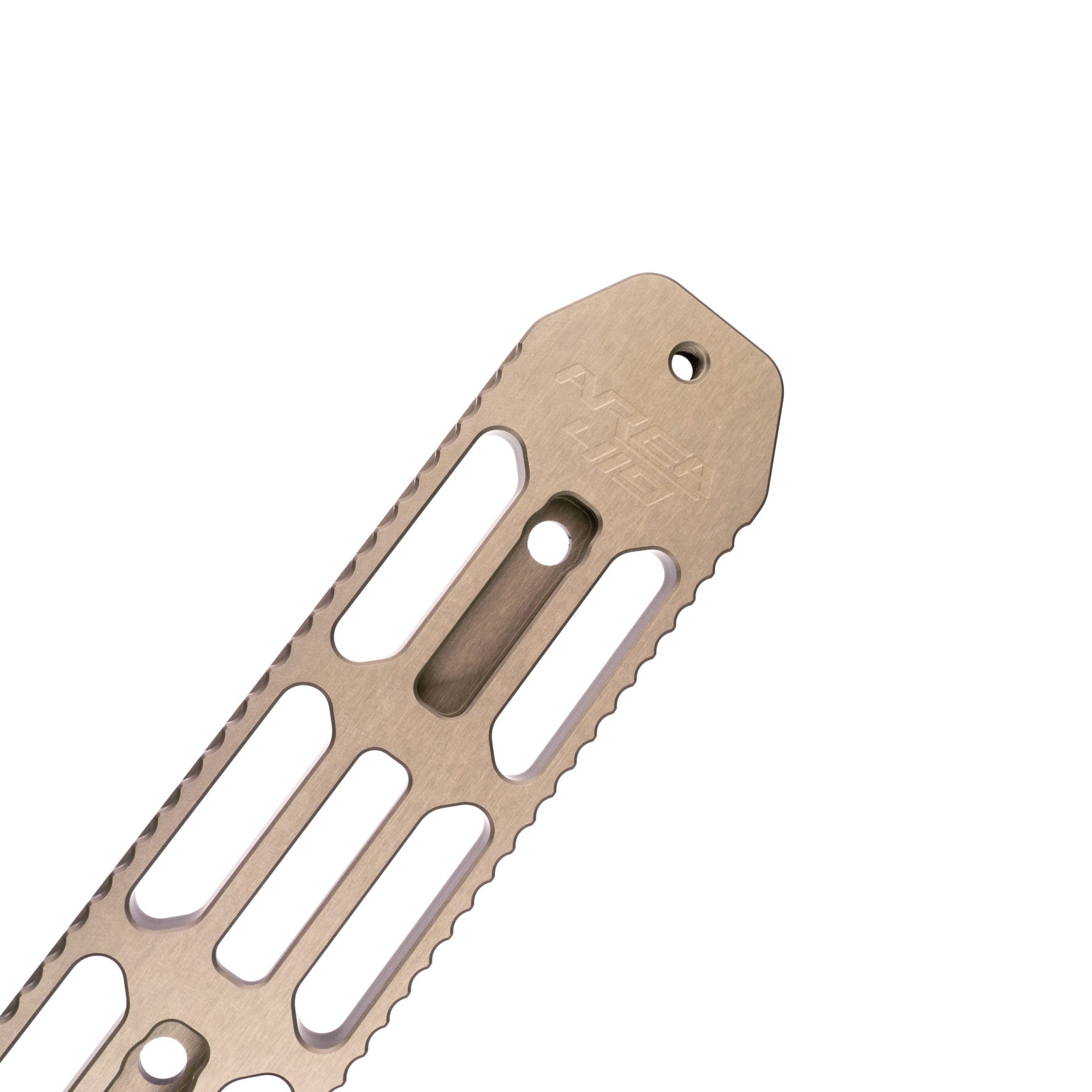

ARCALOCK Rail for Barrett MRAD, MK22 Sniper System

$175.00

Out of stock

Notify me when item is back in stock

Menu
  • Products
    • Reloading Gear
      • The ZERO Reloading Press
      • Funnel Kits
      • Auto Trickler Accessories
      • Reloading Trays
      • Die Blocks
    • Parts and Accessories
      • Muzzle Devices
      • ARCA Rails and Accessories
      • Bipods and Rails
      • Tools and Electronics
      • Gunsmithing & Misc
      • Shooting Bags and Range Gear
    • Core Rifle Components
      • Scope Mounts and Rings
      • Magazines and Extensions
      • Triggers
      • Barrels
      • Actions
      • Stocks and Chassis
    • Apparel and Merchandise
      • Hats and Shirts
      • Patches and Stickers
      • Drinkware
  • Area 419 Exclusives
    • The ZERO Reloading Press
    • The Maverick
    • The Hellfire Match
    • ARCALOCK
    • The RailChanger System
    • Master Funnel Kit
    • Performance Packages
  • Brands
    • –
      • Accuracy International
      • Accurate Mag
      • American Rifle Company
      • Area 419
      • Armageddon Gear
      • B&T Industries
      • Bartlein
      • Cole-Tac
      • Defiance Machine
    • –
      • Harris Engineering
      • Hawk Hill
      • Kahles
      • Magnetospeed
      • Microtech
      • Manners Composite Stocks
      • Ranger Wrap
      • Tenebraex
      • TriggerTech
Featured Products
  • The ZERO Reloading Press
    Rated 4.98 out of 5
    $1,275.00
  • TriggerTech Diamond Triggers
    Rated 4.90 out of 5
    $275.00 – $315.00
  • Description
  • Additional information
  • Reviews (0)



These are for current production MK22/MRAD rifles with the mlok forend. The old rifles with circular holes are not compatible.



**Rear Fixed Barricade stop not included, check it out HERE!

Area 419 is always looking for ways to improve existing products when we are not developing new technologies. With the rapid growth in popularity of ARCA rails in precision rifle, we saw a need to improve this great dovetail technology to something that could be mechanically locked in place instead of just friction.  If you have ever tried using a Barricade stop on an existing ARCA rail, you’ve probably also seen it slide under much pressure.

Introducing the ARCALOCK Dovetail Rail System *Rail is only locking with an Area 419 clamp*

Rail Features:
– Serrated rail sides interface with our proprietary clamp design to mechanically lock it in place so no movement is possible.  Serrations are not sharp, will not damage bags or your hands.
– Rail is backwards compatible with standard Arca accessories, but will not be locking without our clamp
– Rail is specifically built to run the full length of a new Barrett MRAD forend, stopping right at the end of the handguard.
– Made to the RRS 1.5″ Dovetail Standard, so you can be sure lever clamps will work
– No sharp edges. Every corner is radiused, and every edge is chamfered on the machine. This takes longer to make, but it is the only right way.
– Designed to attach to the rifle up to 4 places for maximum strength and stability.
– Type 3 Hard Coat anodized in FDE for additional durability.
– Made from 6061-T6 Aluminum
– Made in-house here in the USA from USA sourced Aluminum

Weight 2 lbs
Dimensions 16 × 2 × 2 in
