Parts and Accessories / Bipods and Rails

ARCALOCK 17″ Universal Dovetail Rail

Rated 5.00 out of 5 based on 3 customer ratings

$165.00

Menu
  • Products
    • Reloading Gear
      • Funnel Kits
      • Reloading Dies
      • Reloading Trays
      • The ZERO System
    • Parts and Accessories
      • ARCALOCK System
      • Bipods and Rails
      • Muzzle Devices
      • Shooting Bags and Range Gear
      • Tools and Electronics
    • Core Rifle Components
      • Actions
      • Barrels
      • Scope Mounts and Rings
      • Stocks and Chassis
      • Magazines and Extensions
      • Triggers
    • Apparel and Merchandise
      • Hats and Shirts
      • Patches and Stickers
  • Area 419 Exclusives
    • The ZERO Reloading Press
    • The Hellfire Match
    • The Maverick
    • ARCALOCK System
    • 419 Scope Mount System
    • RailChanger System
    • Master Funnel Kit
    • Performance Packages
  • Brands
    • –
      • Accuracy International
      • Accurate Mag
      • American Rifle Company
      • Area 419
      • Armageddon Gear
      • B&T Industries
      • Cole-Tac
      • Defiance Machine
    • –
      • Harris Engineering
      • Hawk Hill
      • Microtech
      • Manners Composite Stocks
      • Ranger Wrap
      • Tenebraex
      • TriggerTech
Featured Products
  • The ZERO Reloading Press
    Rated 4.98 out of 5
    $1,275.00
  • TriggerTech Diamond Triggers
    Rated 4.89 out of 5
    $304.99 – $334.99
Description

**Rear Fixed Barricade stop not included, check it out HERE!

MLOK Hardware not included.

Area 419 is always looking for ways to improve existing products when we are not developing new technologies. With the rapid growth in popularity of ARCA rails in precision rifle, we saw a need to improve this great dovetail technology to something that could be mechanically locked in place instead of just friction.  If you have ever tried using a Barricade stop on an existing ARCA rail, you’ve probably also seen it slide under much pressure.

Introducing the ARCALOCK Dovetail Rail System *Rail is only locking with an Area 419 clamp*

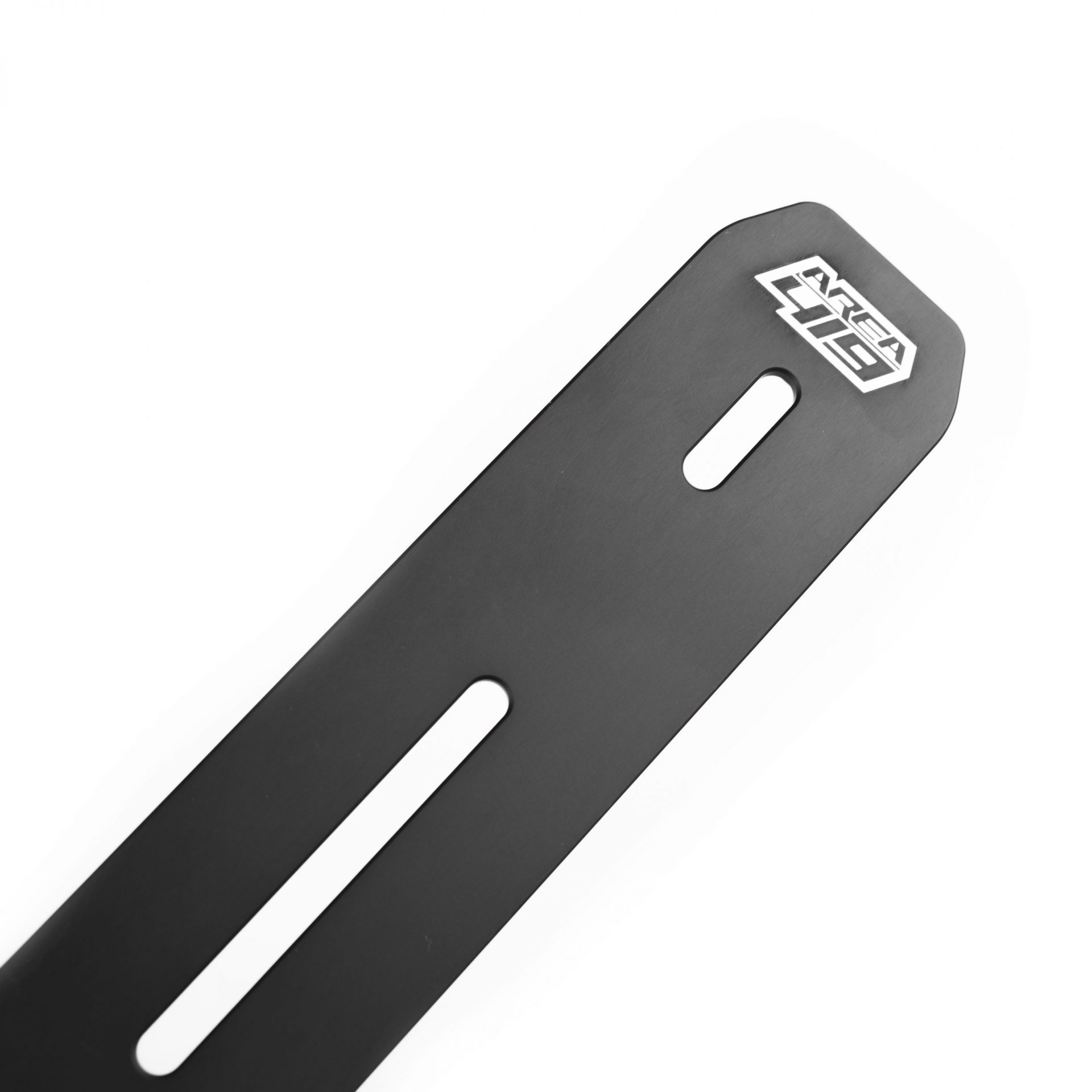

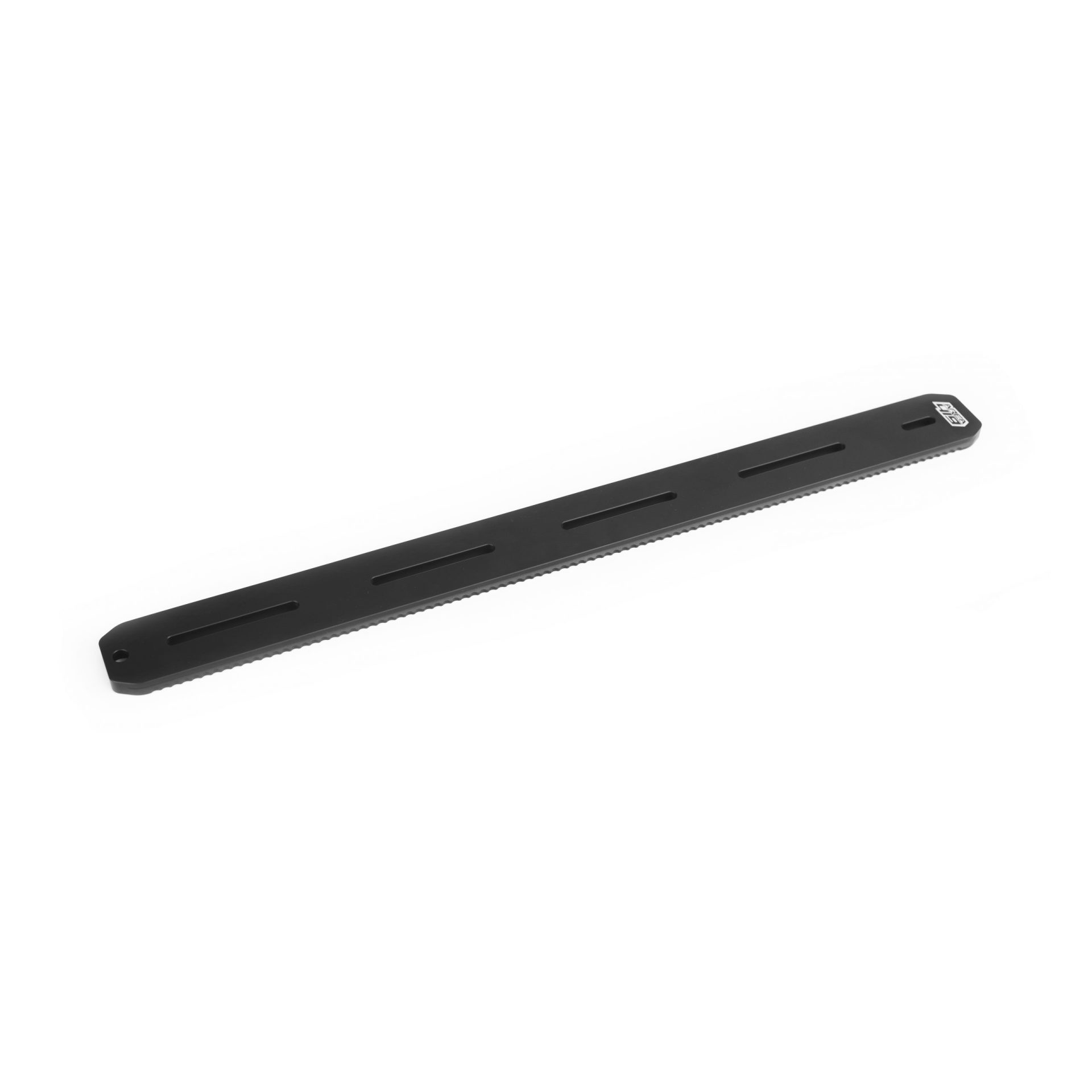

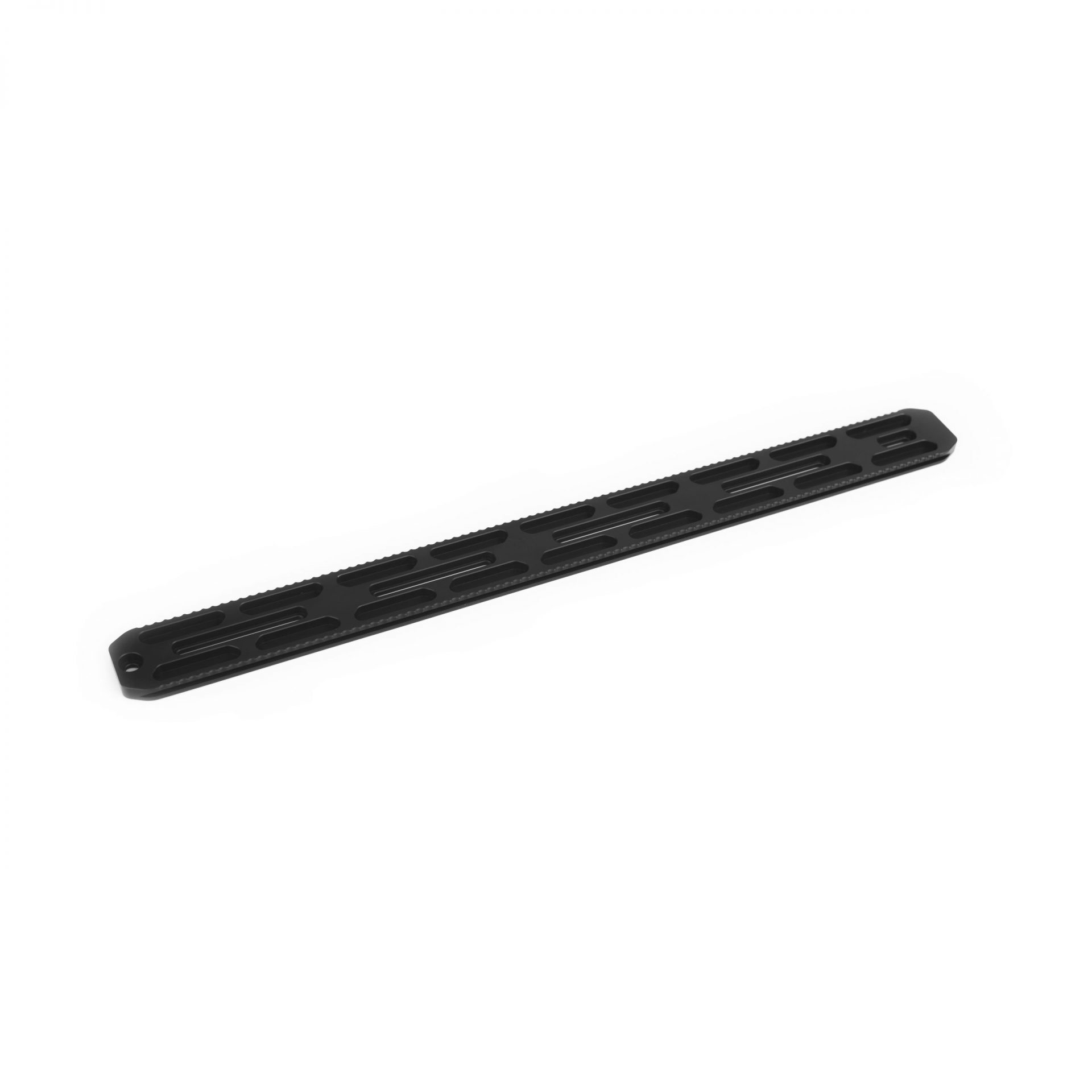

Rail Features:

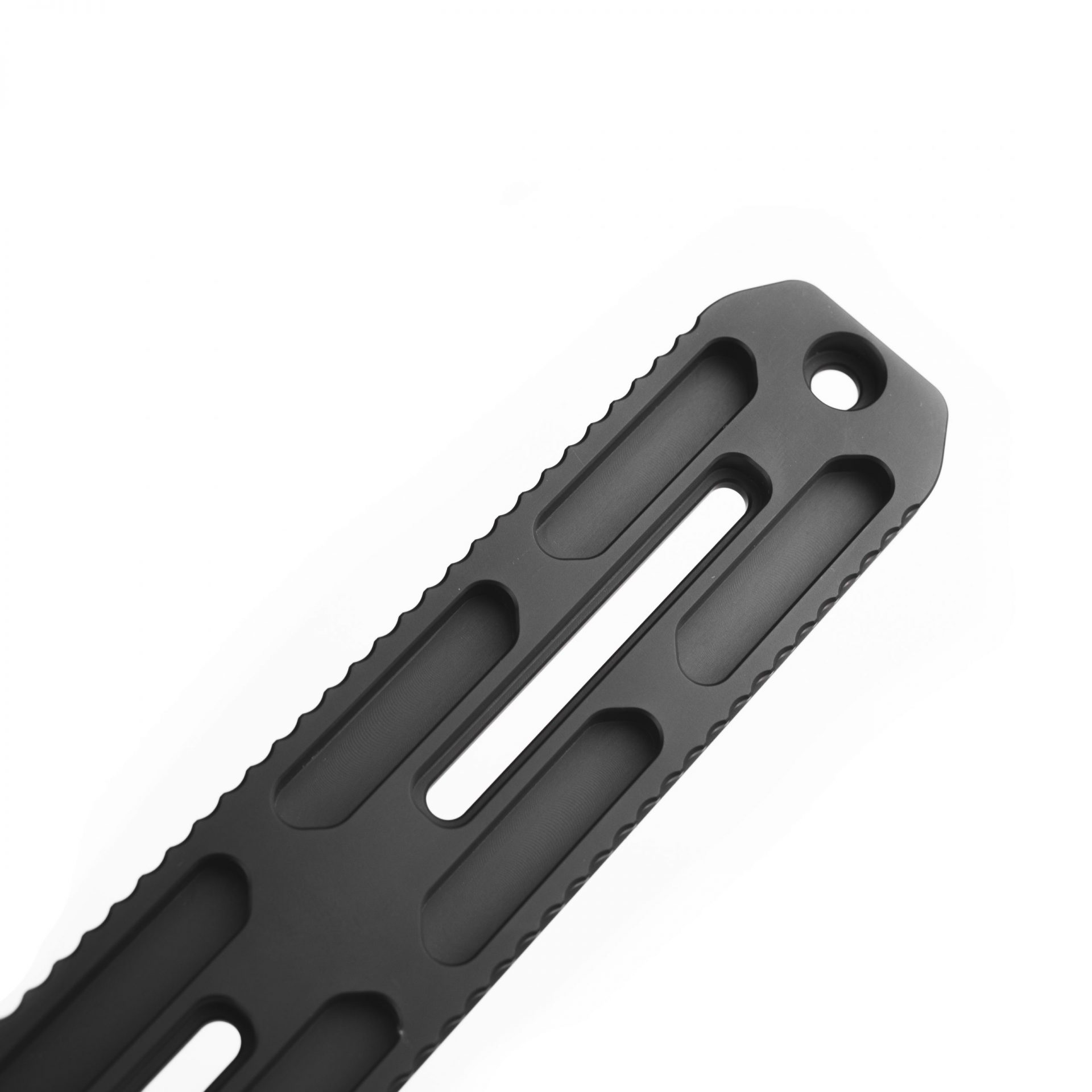

– Serrated rail sides interface with our proprietary clamp design to mechanically lock it in place so no movement is possible.  Serrations are not sharp, will not damage bags or your hands.
– Rail is backwards compatible with standard Arca accessories, but will not be locking without our clamp
– Rail is 17″ long giving you the entire length of the stock forend for attachments.
– Made to the RRS 1.5″ Dovetail Standard, so you can be sure lever clamps will work
– No sharp edges. Every corner is radiused, and every edge is chamfered on the machine. This takes longer to make, but it is the only right way.
– Spacers for rifle stocks with non-flat forends are available HERE
– Designed to attach to the rifle up to 4 places for maximum strength and stability.
– Type 3 Hard Coat anodized for additional durability.
– Made from 6061-T6 Aluminum
– Made in-house here in the USA from USA sourced Aluminum on USA made CNCs
– Rail comes with extra Remington 700-style action screw of extended length to fit the rail to the front action screw attachment point.  Some trimming will likely be required.
– A 3/4″ paddle bit and drill press may be required for installation of tee-nuts, depending on current rifle configuration.  Tee nuts and hardware included.

Additional information
Weight 2 lbs
Dimensions 18 × 2 × 2 in
Manufacturer

Area 419

Reviews (3)

3 reviews for ARCALOCK 17″ Universal Dovetail Rail

  1. Rated 5 out of 5

    Robert R. (verified owner) – June 22, 2022

    Great product, zero complaints whatsoever. Allows for installation on a 15” handgaurd all the way back close to the receiver and with a small length of the arca rail hanging past the front of the handgaurd acting like a spigot mount.

  2. Rated 5 out of 5

    Michael Pair (verified owner) – April 5, 2023

    Fit my Christensen MPR great…

  3. Rated 5 out of 5

    Donald DeBord (verified owner) – July 3, 2023

    Fit perfect, easy install!
