ZERO Die Ring Multi-Packs
$100.00 – $200.00

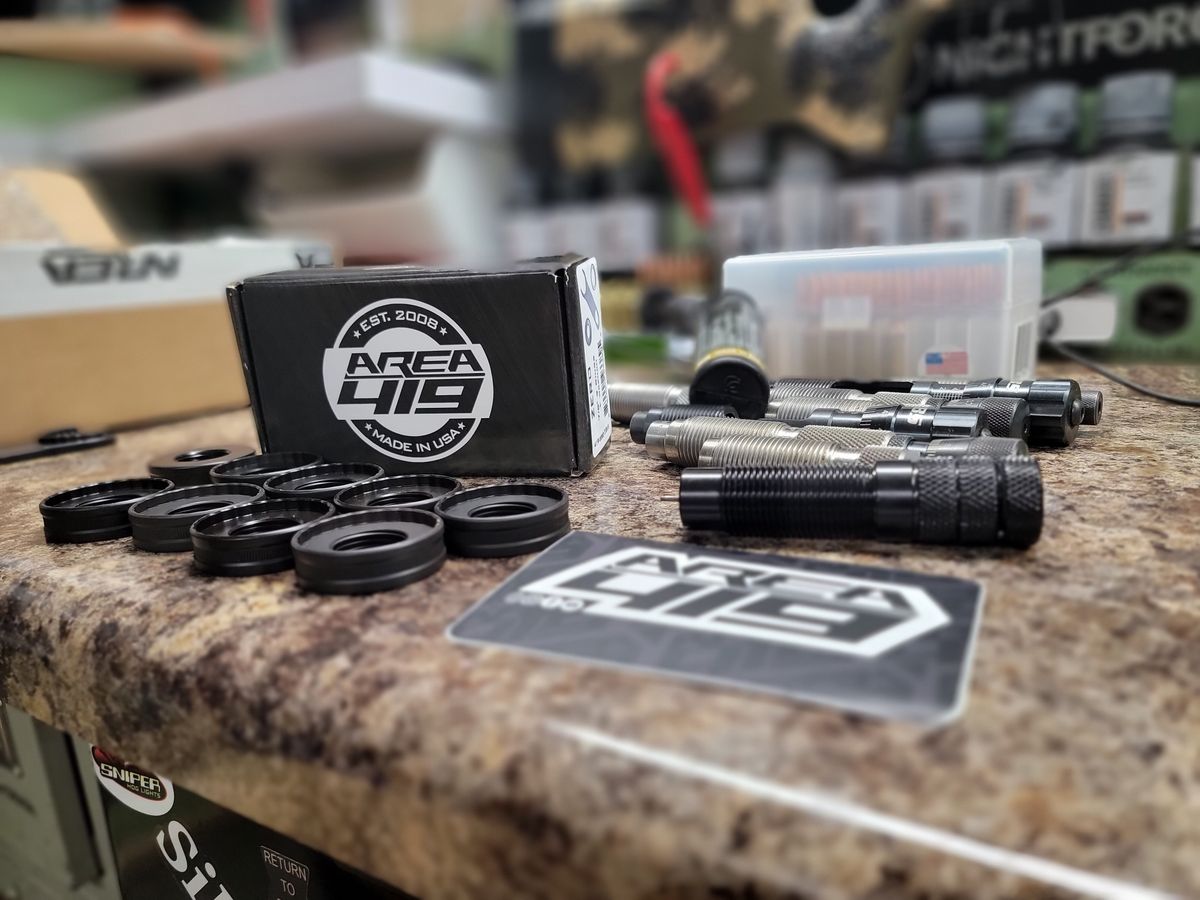

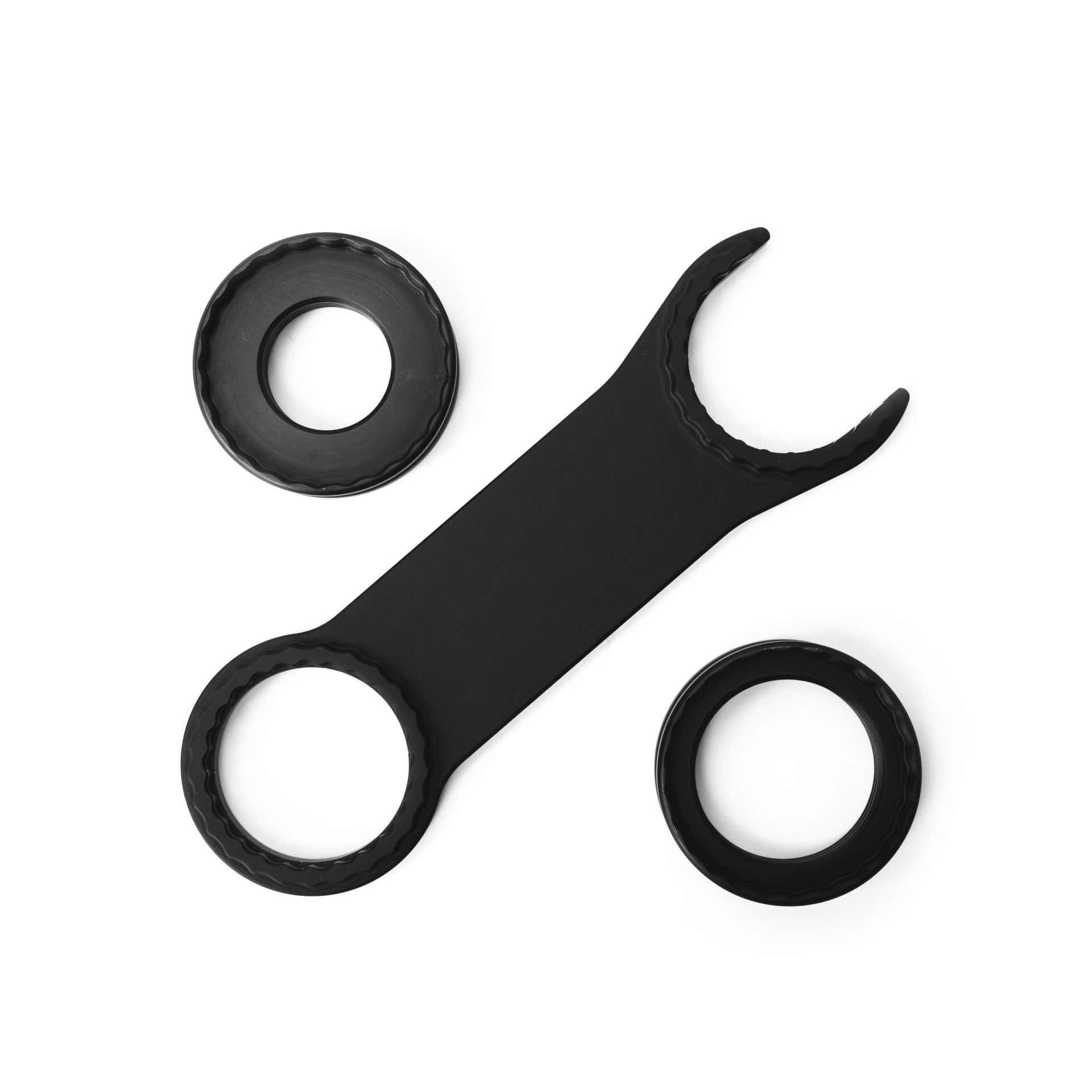

All Multi-Packs include multiple rings (details below) and a die wrench. Finish on all multi-packs will be black nitride. Wrenches are aluminum, so the finish is a black hardcoat anodize.
7/8″ Multi-Pack includes (4) rings, all 7/8×14, and a wrench.
7/8″ Turret-Pack includes (9) rings, all 7/8×14, and a wrench.
1-1/4″ Multi-Pack includes (4) rings, all 1-1/4×12, and a wrench.
Hybrid Multi-Pack includes (2) 7/8×14 rings, (2) 1-1/4×12 rings, and a wrench.
ORDER INDIVIDUAL RINGS >>HERE<<
Through the research and development process for the ZERO, it became a testing bed for MANY reloading products. We needed to isolate variables, and ensure we were testing the press and not just the dies/shellholders/etc. One of the major culprits we found for inconsistency was actually lock rings. MOST lock rings on the market are held into place by a set screw or they’re split/clamp style. We found these to be inconsistent by design, as they needed to secure themselves to the dies for constant removal/replacement in single-stage presses.
NOTE: THESE RINGS CAN NOT BE USED IN EVERY SLOT ON A REDDING T-7, THE RING DIAMETER IS TOO LARGE.
So, we decided to make our own. Here’s where we landed:
- LARGE DIAMETER – more surface contact with the turret head means the ring will align with the press and force the die straight, instead of grabbing onto the die and aligning as it may.
- MORE THREAD ENGAGEMENT – the rings feature .350″ of thread engagement, which is 15-25% more than common die lock rings. This results in roughly a full thread of additional engagement, increasing the ability of the ring to square the die to the press.

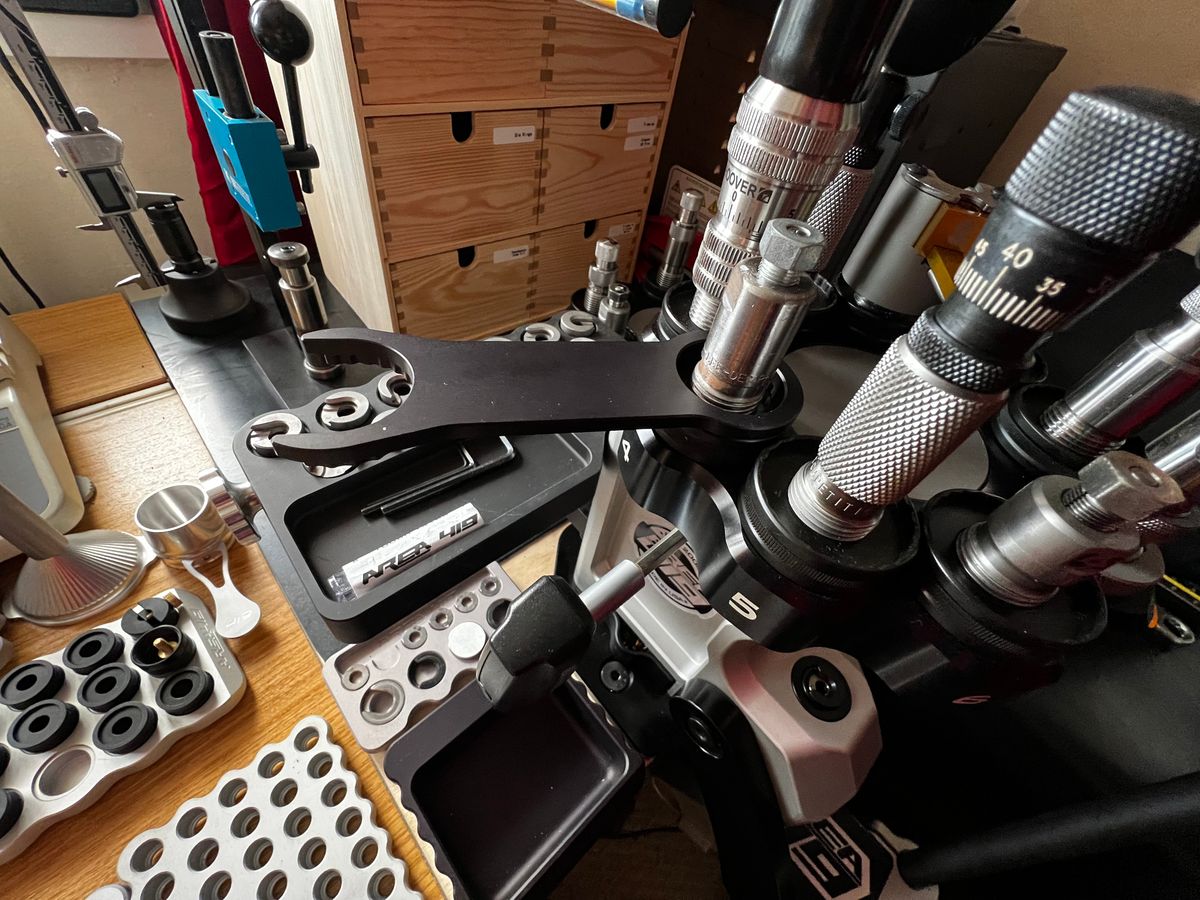

- INTERNAL WRENCH ENGAGEMENT – with traditional rings, there is a flat or knurling on the outside, which requires you to get a wrench around the outside to tighten. On a multi-die head this requires you to get tools between dies and fight with the location – or you have to make the ring smaller which has real downsides. This ring is designed with internal wrench engagement, mitigating this issue altogether.
- PRECISION STAINLESS STEEL MANUFACTURING – The threads and bottom face of the ring are machined in a single operation, delivering square surfaces to align your die. We then leave the ring and threads hole and unobscured by splits and grub screws. All rings are made of 17-4PH stainless steel. Available in raw stainless or with a black nitride finish.
Total thickness of rings is .500″ and outside diameter is 1.685″
| Weight | 1 lbs |
|---|---|
| Dimensions | 7 × 4 × 1 in |
| Multi-Pack Type | 7/8" Multi-Pack (4 Rings + Wrench), 7/8" Turret-Pack (9 Rings + Wrench), 1-1/4" Multi-Pack (4 Rings + Wrench), Hybrid Multi-Pack (4 Rings + Wrench) |
| Manufacturer | Area 419 |
15 reviews for ZERO Die Ring Multi-Packs
Add a review
Related products
Kevin C. (verified owner) –
OMG, these are such an improvement to the standard design. Purchased a 4 pack to test them out. Now I’m just waiting for them to return in stock so my turret head can be complete. Great work guys!!!
Larry Joe Montano (verified owner) –
Bad ass hands down better than anything else on the market
Thomas Markham (verified owner) –
Awesome stuff!
Kurt Lohrmann (verified owner) –
Great Product
ROBERT Merulli (verified owner) –
They fit very well and make it easier to install or remove. I just wish I had more turrets to use them on.
Anonymous (verified owner) –
Great surface area contact. The wrench will attempt to “come out of “ the inside serrations if ANY upward force is applied during the tightening process. Be gentle.
Taken as a whole, the zero press is an extremely well built reloader that marks a significant leap forward in terms of precision.
MARK SOWELL (verified owner) –
Great product. works better than any other locking ring.
Gregory DeGenaro (verified owner) –
The best press and best die locking rings available.

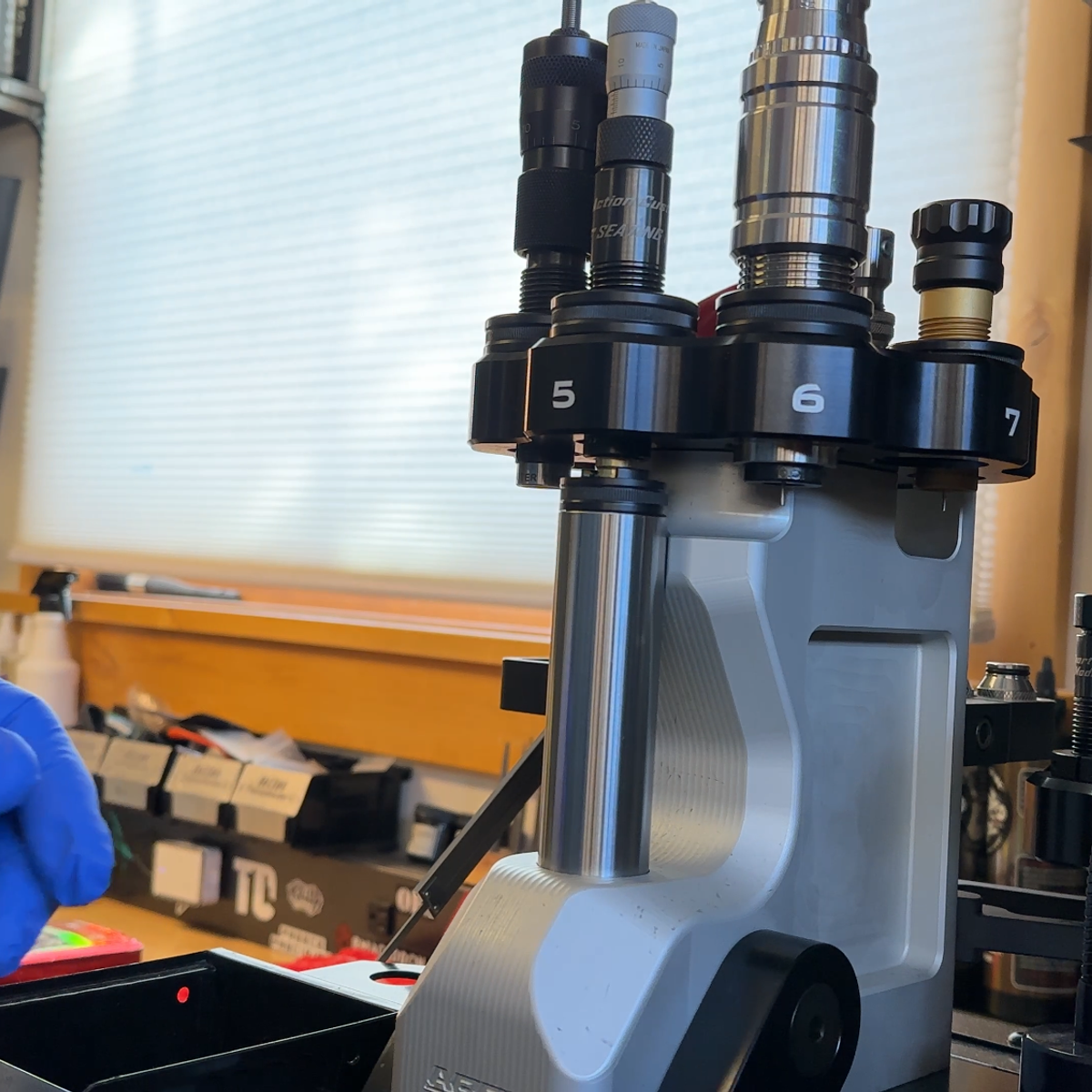

Uploaded image(s):
Brandon (verified owner) –
I got a set of these in anticipation of my Zero Press shipping soon. Today I decided to try them out on my existing T-7 press. Wow! These things are solid and do a better job of securing dies in the press. Yet another innovative product!
Ronald v. (verified owner) –
As you would expect for these guys these die rings are flawless. Once you install them you will see what I mean. They just look and feel precise, and they are.
Mark (verified owner) –
A bit pricey but nice
Roger (verified owner) –
Excellent product, provides a larger area for holding the dies in proper alignment and the wrench also allows a superior grip when tightening the ring down.
Hamid Z. (verified owner) –
I ordered a 9 pack. Are they essential, I have to say no but they are nice to have.
Anthony A. (verified owner) –
Machining and coating are perfect. The wrench makes it very easy to lock down dies.
Christopher Franks (verified owner) –
I waited months for these to come back! Glad I got some!
