XYLO Chassis from American Rifle Company

Rated 5.00 out of 5 based on 1 customer rating

$1,300.00

Clear
Menu
  • Products
    • Reloading Gear
      • The ZERO Reloading Press
      • Funnel Kits
      • Auto Trickler Accessories
      • Reloading Trays
      • Die Blocks
    • Parts and Accessories
      • Muzzle Devices
      • ARCA Rails and Accessories
      • Bipods and Rails
      • Tools and Electronics
      • Gunsmithing & Misc
      • Shooting Bags and Range Gear
    • Core Rifle Components
      • Scope Mounts and Rings
      • Magazines and Extensions
      • Triggers
      • Barrels
      • Actions
      • Stocks and Chassis
    • Apparel and Merchandise
      • Hats and Shirts
      • Patches and Stickers
      • Drinkware
  • Area 419 Exclusives
    • The ZERO Reloading Press
    • The Maverick
    • The Hellfire Match
    • ARCALOCK
    • The RailChanger System
    • Master Funnel Kit
    • Performance Packages
  • Brands
    • –
      • Accuracy International
      • Accurate Mag
      • American Rifle Company
      • Area 419
      • Armageddon Gear
      • B&T Industries
      • Bartlein
      • Cole-Tac
      • Defiance Machine
    • –
      • Harris Engineering
      • Hawk Hill
      • Kahles
      • Magnetospeed
      • Microtech
      • Manners Composite Stocks
      • Ranger Wrap
      • Tenebraex
      • TriggerTech
Featured Products
  • The ZERO Reloading Press
    Rated 4.98 out of 5
    $1,275.00
  • TriggerTech Diamond Triggers
    Rated 4.90 out of 5
    $275.00 – $315.00
  • Description
  • Additional information
  • Reviews (1)

ALL IN-STOCK CHASSIS ARE RIGHT HANDED AT THIS TIME

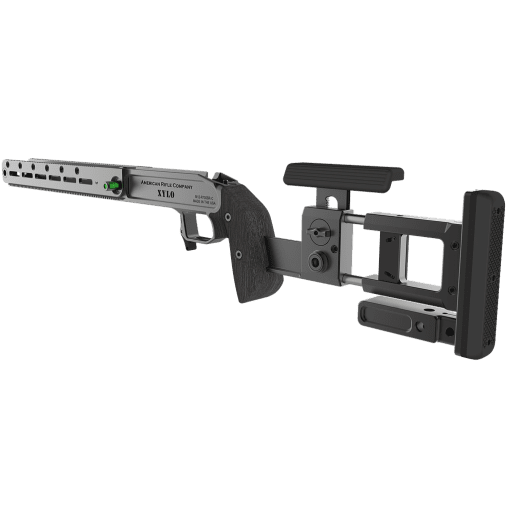

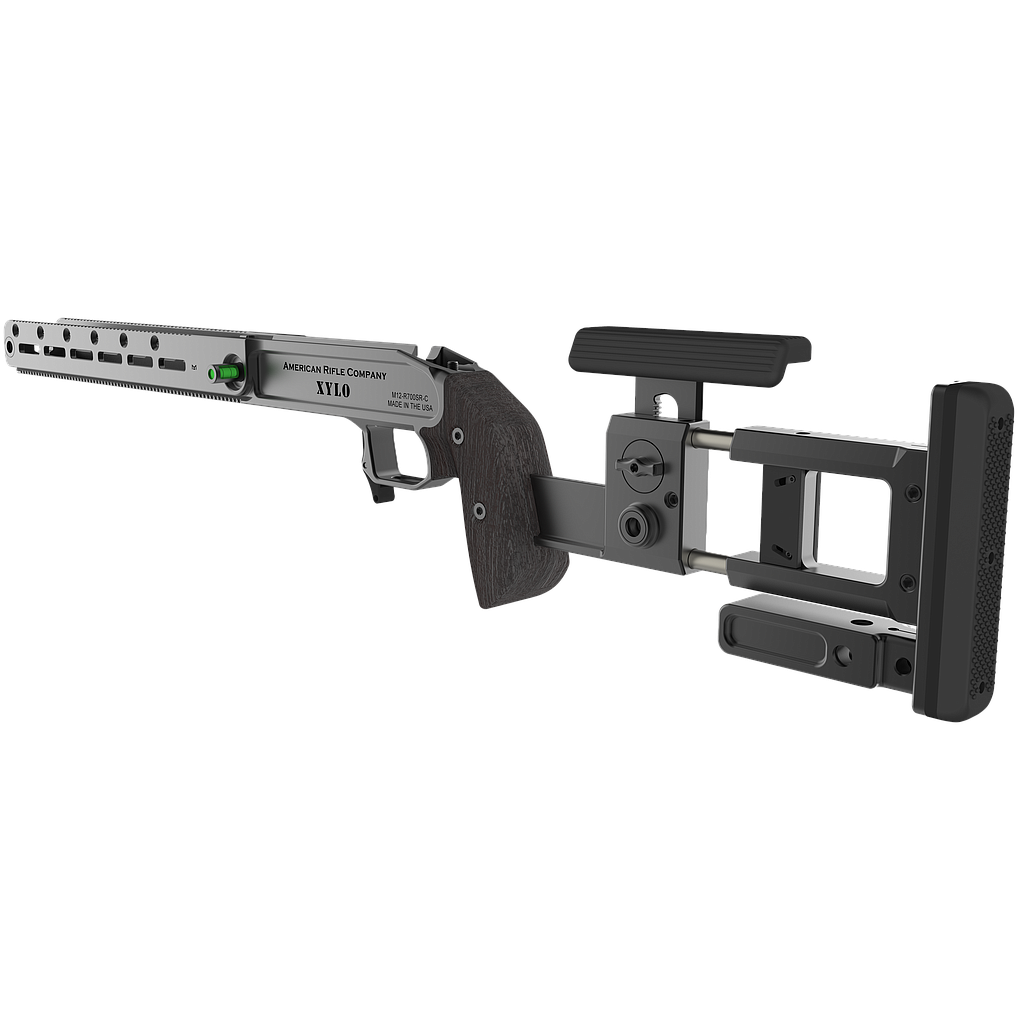

The XYLO Chassis from American Rifle Company is a new, exceptionally high-quality precision rifle chassis, featuring our ARCALOCK system. Here is an intro video from Ted, and some highlights: ]

  • Machined from a single piece of 7075 aluminum alloy for exceptional strength.
  • Compatible with Archimedes, Mausingfield, Nucleus actions
  • Compatible with Remington M700 actions and clones.
  • Relief cut for actions with trigger hangers
  • Short action chassis weights 4.6 pounds with included aluminum bag rider.
  • Walnut grip that works with your hand.  You’ll understand when you feel it.
  • Three inches of total length-of-pull adjustment
    • Length of pull range is 325 – 400mm (12.75 – 15.75 in)
    • 2″ of tool-less quick-adjust to accommodate rapid changes in shooting position, body armor, etc.
    • Additional 1″ of length-of pull-adjustment requiring T25 driver or wrench
    • 3/8″ diameter 6Al4V titanium length-of-pull slide rods
  • Integrated bubble level which can be seen by most people over 40.  Deploys to both left and right side.
  • Integrally machined Arca-Swiss with Area 419 ArcaLock fore end rail
  • Integrally machined Anschutz fore end rail
  • M-LOK slots along both sides of fore end
  • Countersunk fore end holes and serrated interface for robust and repeatable optical mounting hardware
  • Accessory holes drilled within Anschutz rail for your imagination
  • Flared magazine well for easy reloading.  Long action designed for 3.85 inch external length mag (CIP length).
  • Low profile fore end makes mag changes easy when close to the ground
  • Locking rack and pinion cheek piece with four possible adjustments (up & down, left & right, backwards & forwards, and yaw)
  • Butt plate can be adjusted for vertical position and rifle cant (roll).
  • Four hardened stainless steel sling swivel cup inserts.
  • Bag rider is included
  • Additional sling swivel cups in bag rider

Optional accessories (may be shown in some images):

  • Forward Picatinny optics mount
  • Auxiliary bi-pod adapter
  • Internal and External fore-end weight kit
  • Steel bag rider for additional aft end weight

Learn more here >> https://www.americanrifle.com/shop/product/xylo-chassis-139

Weight 8 lbs
Dimensions 30 × 6 × 6 in
Manufacturer

American Rifle Company

Action Length

Short, Long

1 review for XYLO Chassis from American Rifle Company

  1. Rated 5 out of 5

    Anonymous (verified owner) – March 12, 2021

    This chassis checks all of the boxes for me, comfort of a stock with the adjustability and solid attachment (machined in ARCA lock) of a chassis.
