Home / Core Rifle Components / Triggers

TriggerTech Diamond Triggers

Rated 4.83 out of 5 based on 6 customer ratings

$275.00 – $315.00

DUE TO PRODUCTION AND IMPORT DELAYS, PLEASE ALLOW UP TO 10 DAYS FOR SHIPMENT

Clear
Menu
  • Products
    • Core Rifle Components
      • Complete Builds
      • Actions
      • Barrels
      • Triggers
      • Stocks and Chassis
      • Optics
      • Scope Mounts and Rings
    • Parts and Accessories
      • Muzzle Devices
      • ARCA Rails and Accessories
      • Bipods and Rails
      • Magazines and Extensions
      • Tools and Electronics
      • Gunsmithing & Misc
      • Shooting Bags and Range Gear
    • Reloading Gear
      • The ZERO Reloading Press
      • Funnel Kits
      • Auto Trickler Accessories
      • Reloading Trays
      • Die Blocks
    • Apparel and Merchandise
      • Hats and Shirts
      • Patches and Stickers
      • Drinkware
  • Area 419 Exclusives
    • The Maverick
    • The Hellfire
    • ARCA Lock
    • The RailChanger System
    • Master Funnel Kit
    • Performance Packages
  • Brands
    • –
      • Accuracy International
      • Accurate Mag
      • American Rifle Company
      • Area 419
      • Armageddon Gear
      • B&T Industries
      • Bartlein
      • Bix’n Andy
      • Cole-Tac
      • Curtis Custom
    • –
      • Defiance Machine
      • Harris Engineering
      • Hawk Hill
      • Kahles
      • Magnetospeed
      • Manners Composite Stocks
      • Tenebraex
      • Timney Triggers
      • TriggerTech
Featured Products
  • The ZERO Reloading Press
    Rated 5.00 out of 5
    $1,200.00
  • TriggerTech Diamond Triggers
    Rated 4.83 out of 5
    $275.00 – $315.00
  • Description
  • Additional information
  • Reviews (6)

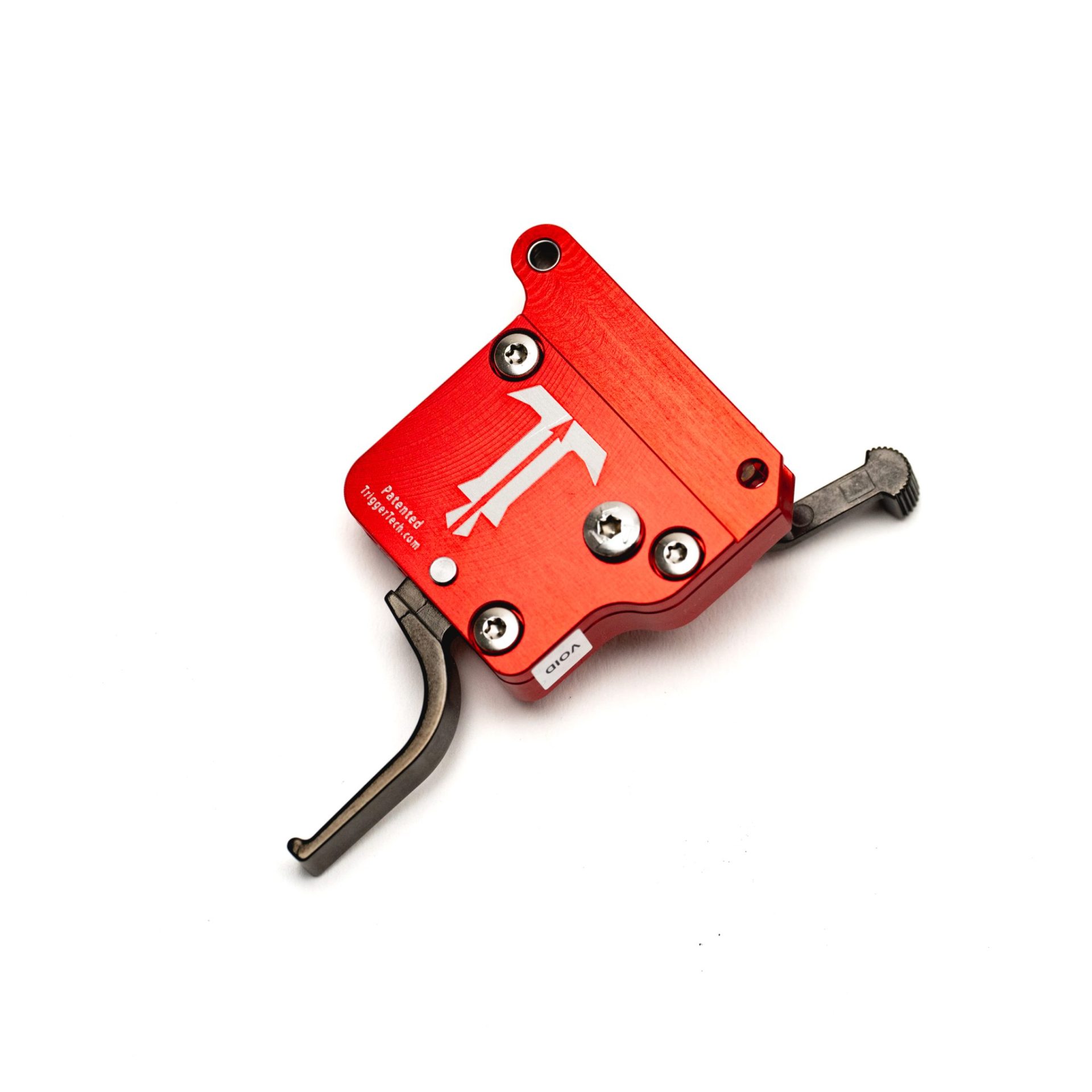

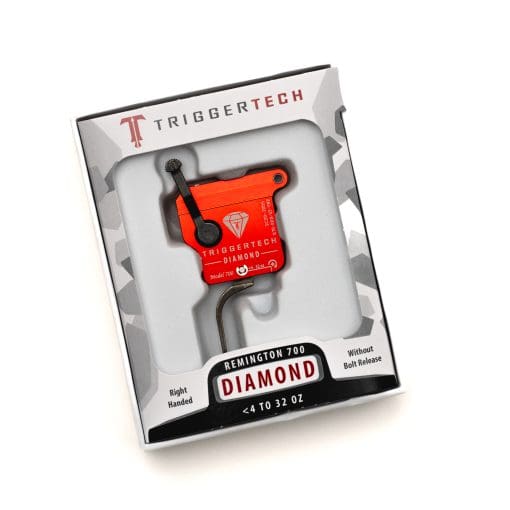

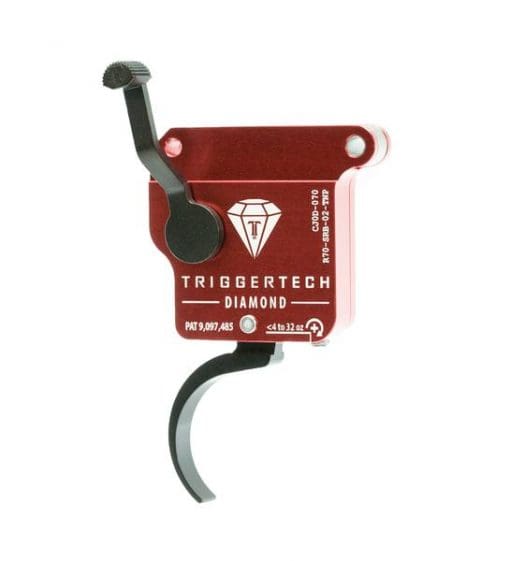

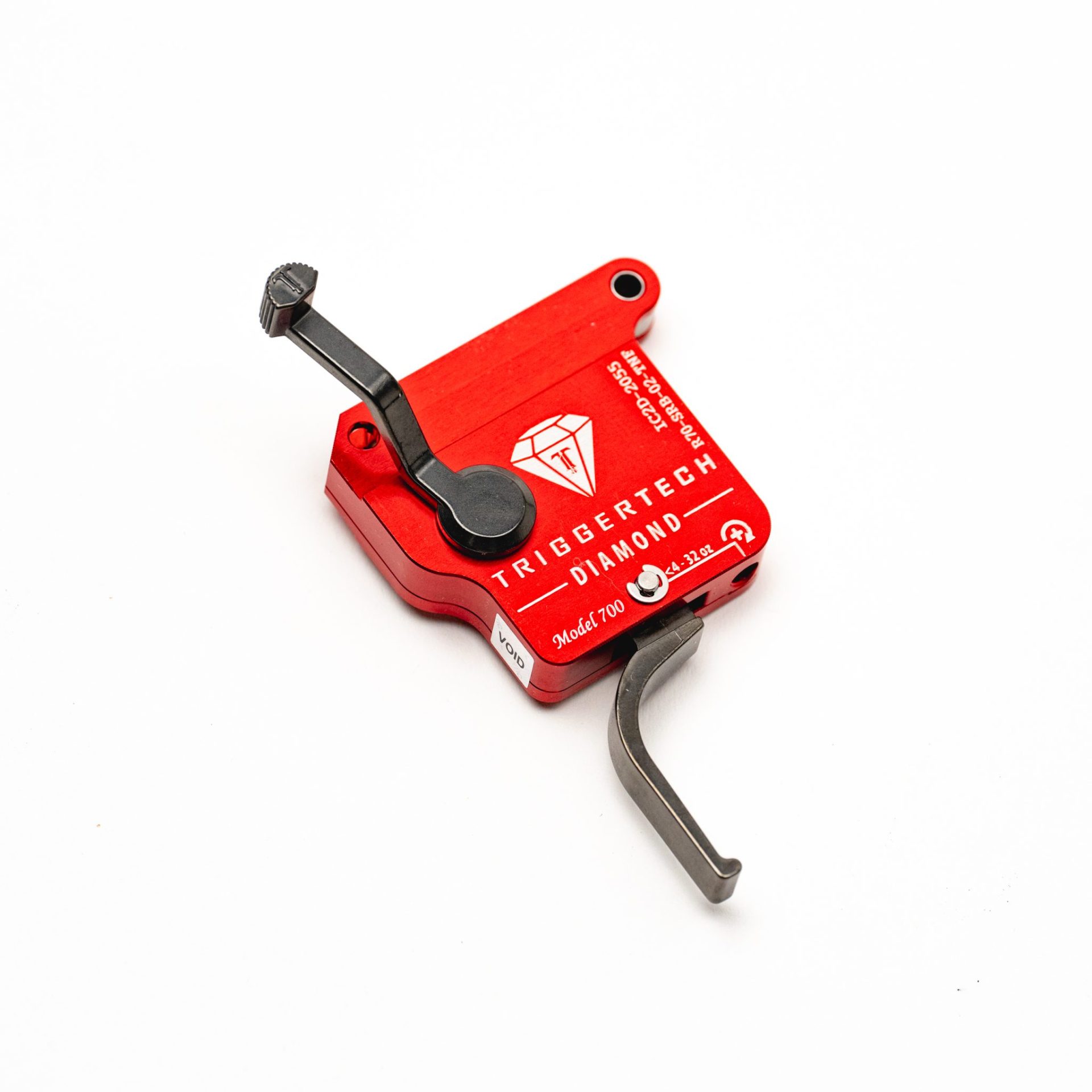

The TriggerTech Diamond Rem 700 Trigger was designed to meet the requirements of leading competitive shooters. The Diamond features a pull weight range of less than 4 oz to 32 oz. Shooters have described it is the most consistent and crisp breaking trigger they have ever felt. After feeling the crisp break on the Diamond you will immediately become aware of the creep that exists in all other triggers.

Intended Use
Precision Rifle, benchrest, competition, precision shooting, military, law enforcement, long range hunting, F Class, rugged hunting, harsh environments operations, target shooting, ultra long range, varmint hunting.

Trigger Control Details
Trigger Lever Type: Traditional Curved, Flat Straight and Pro Curved
Trigger Action: Single Stage
FRT: Yes
TKR Technology: Yes
CLKR Technology: Yes
Overtravel: Sub .010″
Pull Weight: <4 oz – 32 oz
Bolt Release: Without
Safety: With (email us for without)
Hand: Right & Left (+ $20)
Warranty: Product lifetime
Weapon Platform: Remington 700 Clone Actions
Material Details
Housing: 7075 Aluminum (anodized)
Key Components: 440C Stainless Steel
PVD Black – PVD stands for Physical Vapour Deposition. It is a hard and durable coating that is applied to external stainless components to give them a clean black color.

Full Description
The first Rem 700 Diamond Trigger was shown at the 2017 NRA Show. Since then TriggerTech has worked with the K&M Shooting Team and several leading R700 Clone action manufacturers the refine the product. The Rem 700 Diamond is truly zero creep and is the most consistent and crisp breaking trigger you will ever use. The diamond will make you aware of the creep that exists in other triggers. It features new variable rate adjustment technology that enables quick and confident adjustment from <4oz – 32oz with TriggerTech’s patented CLKR Technology™. The adjustment feature utilizes externally accessible set screw and the adjustment range begins at ~0.2 oz/click from <4 oz to ~9 oz and the changes to ~1 oz click from ~9 oz to 32 oz. Due to the exceptionally crisp break, most shooters report the pull weights feeling significantly lighter than a friction based trigger of the same measured weight. Five of the critical Diamond components are assembled as matched set to enable a true zero-creep break, extremely short overtravel and offers outstanding reliability, even in the harshest environments. Frictionless Release Technology™, along with hardened 440C stainless steel internal components ensure corrosion resistance and an extended service life. As Frictionless Release Technology™ does not rely on coating, polishing or lubricating the key engagement surfaces, trigger pulls will be more consistent from shot to shot and after thousands of shots than you ever thought possible.

All pull weights and measurements are approximate. ***Pull weights of TriggerTech Triggers are directly impacted by firing pin spring weight. Overweight firing pin springs may cause pulls weights to vary above the advertised range***

Weight .4 lbs
Dimensions 5.5 × 4.5 × 2 in
Shoe/Hand

Flat, Right Hand, Flat, Left Hand, Pro-Curved, Right Hand, Pro-Curved, Left Hand

Manufacturer

TriggerTech

6 reviews for TriggerTech Diamond Triggers

  1. Rated 5 out of 5

    Timothy D. (verified owner) – November 15, 2020

    Pure glass

  2. Rated 5 out of 5

    David W. (verified owner) – December 20, 2020

    Diamonds are a shooters best friend! Have 5 now and just exquisite performance in all conditions a hot and dusty or cold and muddy rifle match can present to test your rifles tolerance to abuse.

    Uploaded image(s):

    Image #1 from David W.
  3. Rated 5 out of 5

    Anonymous (verified owner) – December 20, 2020

    Nicest trigger that I own.

  4. Rated 5 out of 5

    Jeff S. (verified owner) – December 20, 2020

    4th one

  5. Rated 4 out of 5

    Michael (verified owner) – December 21, 2020

    One is always looking for a lower price.

  6. Rated 5 out of 5

    Bret Files (verified owner) – December 22, 2020

    As long as this one doesn’t suffer from the dreaded 200 round fail, I couldn’t be happier.
