Sidewinder Suppressor Mounts

Rated 4.00 out of 5 based on 1 customer rating

$100.00 – $110.00

Clear
Menu
  • Products
    • Core Rifle Components
      • Complete Builds
      • Actions
      • Barrels
      • Triggers
      • Stocks and Chassis
      • Optics
      • Scope Mounts and Rings
    • Parts and Accessories
      • Muzzle Devices
      • ARCA Rails and Accessories
      • Bipods and Rails
      • Magazines and Extensions
      • Tools and Electronics
      • Gunsmithing & Misc
      • Shooting Bags and Range Gear
    • Reloading Gear
      • The ZERO Reloading Press
      • Funnel Kits
      • Auto Trickler Accessories
      • Reloading Trays
      • Die Blocks
    • Apparel and Merchandise
      • Hats and Shirts
      • Patches and Stickers
      • Drinkware
  • Area 419 Exclusives
    • The Maverick
    • The Hellfire
    • ARCA Lock
    • The RailChanger System
    • Master Funnel Kit
    • Performance Packages
  • Brands
    • –
      • Accuracy International
      • Accurate Mag
      • American Rifle Company
      • Area 419
      • Armageddon Gear
      • B&T Industries
      • Bartlein
      • Bix’n Andy
      • Cole-Tac
      • Curtis Custom
    • –
      • Defiance Machine
      • Harris Engineering
      • Hawk Hill
      • Kahles
      • Magnetospeed
      • Manners Composite Stocks
      • Tenebraex
      • Timney Triggers
      • TriggerTech
Featured Products
  • The ZERO Reloading Press
    Rated 5.00 out of 5
    $1,200.00
  • TriggerTech Diamond Triggers
    Rated 4.83 out of 5
    $275.00 – $315.00
  • Description
  • Additional information
  • Reviews (1)

Part of the Patented Hellfire/Sidewinder Modular Brake System

The Sidewinder Self Timing Brake system is not just another knockoff copy of existing self timing brakes.  It was engineered from the ground up to be different, easier to install, and much more versatile.  Read more on all of its advantages below:

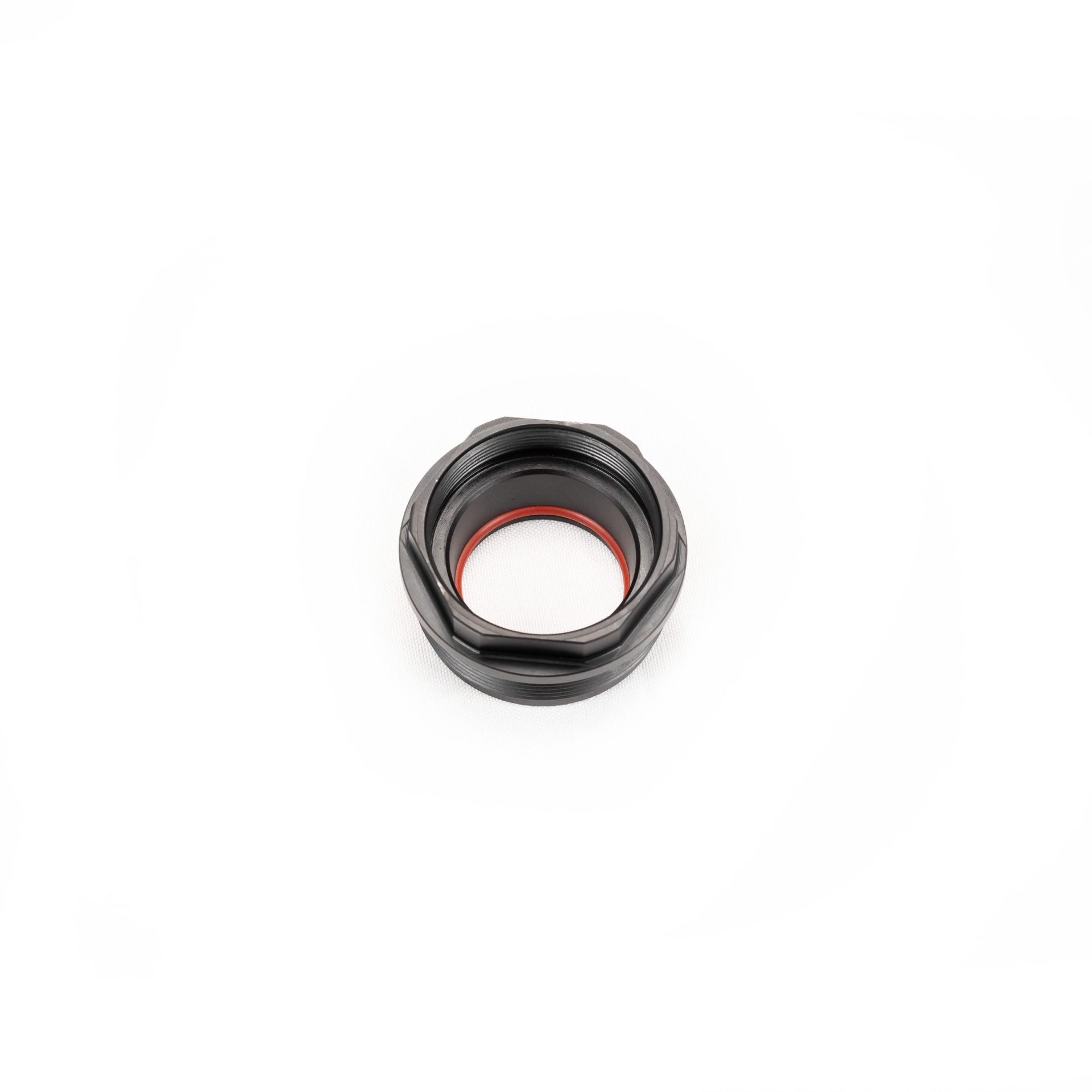

NOTE:  SilencerCo Omega mount also fits the Hybrid and the Harvester BIG BORE.



Suppressor Mounts

– Suppressor mount allows you to use your compatible suppressors with the Sidewinder Self Timing Brake system by simply removing your Sidewinder Brake and installing one of these mounts

– Mounts are Black Nitrided to prevent galling

– Made to meet manufacturers specifications, but these adapters are not associated with their respective manufacturers in any way.

– If there is a suppressor you would like to see a mount made for, email sales@area419.com and we will consider them based on demand.

– Generation 2 mounts no longer use a collar like the muzzle brake.  These mounts get torqued into your suppressor and therefore allow your suppressor to become a direct thread onto the Hellfire Universal Adapter (left hand).

  • Allows the mount to be much more compact, and adds very little to the overall length of the system
  • We recommend blue Loc-tite on the external threads of the mount to hold it semi-permanently in the suppressor.  Since you will be threading the can on in a left hand direction now, if it is not torqued properly into the suppressor, you may unscrew it when attaching to the barrel.  No fear though, its impossible to get the two stuck together in this situation due to the opposing thread directions, simply turn it the other way and they will separate, then start over.
  • Gen 2 Mounts come with a wrench



Universal Adapter – https://www.area419.com/product/sidewinder-ua/

– Universal adapter system allows TOOL FREE use of multiple muzzle attachments

– Universal adapter uses a taper surface similar to a machine tool spindle for the absolute best alignment with the muzzle threads.

– Universal adapter is made in one operation on a state of the art CNC lathe, threads are 100% concentric to taper surface

– All Universal Adapters will come Black Nitrided to prevent galling.

– Available in 5/8-24, 3/4-24, 3/4-20, M18x1, and M18x1.5  All are class 3 or 6H fit.

NOTE: The use of Lemishine (or any citric-acid cleaner) or CLR to clean your brake, adapter or mount will likely discolor the black nitride, and will void the lifetime warranty of your product. Don’t do this. Seriously. It’ll turn pink and you’ll feel like an idiot.

This Video quickly shows how the Gen 2 suppressor mounts operate and how to install:

Here is an excellent video showing the repeatability you can expect from the Hellfire System.  We switch between the brake, a TBAC Ultra 7 and SilencerCo Omega twice to show the POI consistency.

Here is a quick video covering installation and the ease of swapping between brake and suppressor



Here is a longer, very detailed video on the entire system and its components, also covers installation in depth.

Weight .5 lbs
Dimensions 6 × 3.5 × 2 in
Manufacturer

Area 419

Suppressor Model

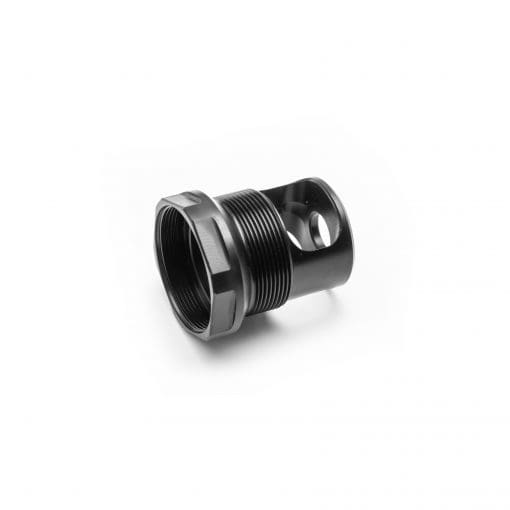

SilencerCo Omega, TBAC BA / 338 Ultra, TBAC CB / Ultra 5,7,9

1 review for Sidewinder Suppressor Mounts

  1. Rated 4 out of 5

    Marshall M. (verified owner) – January 20, 2021

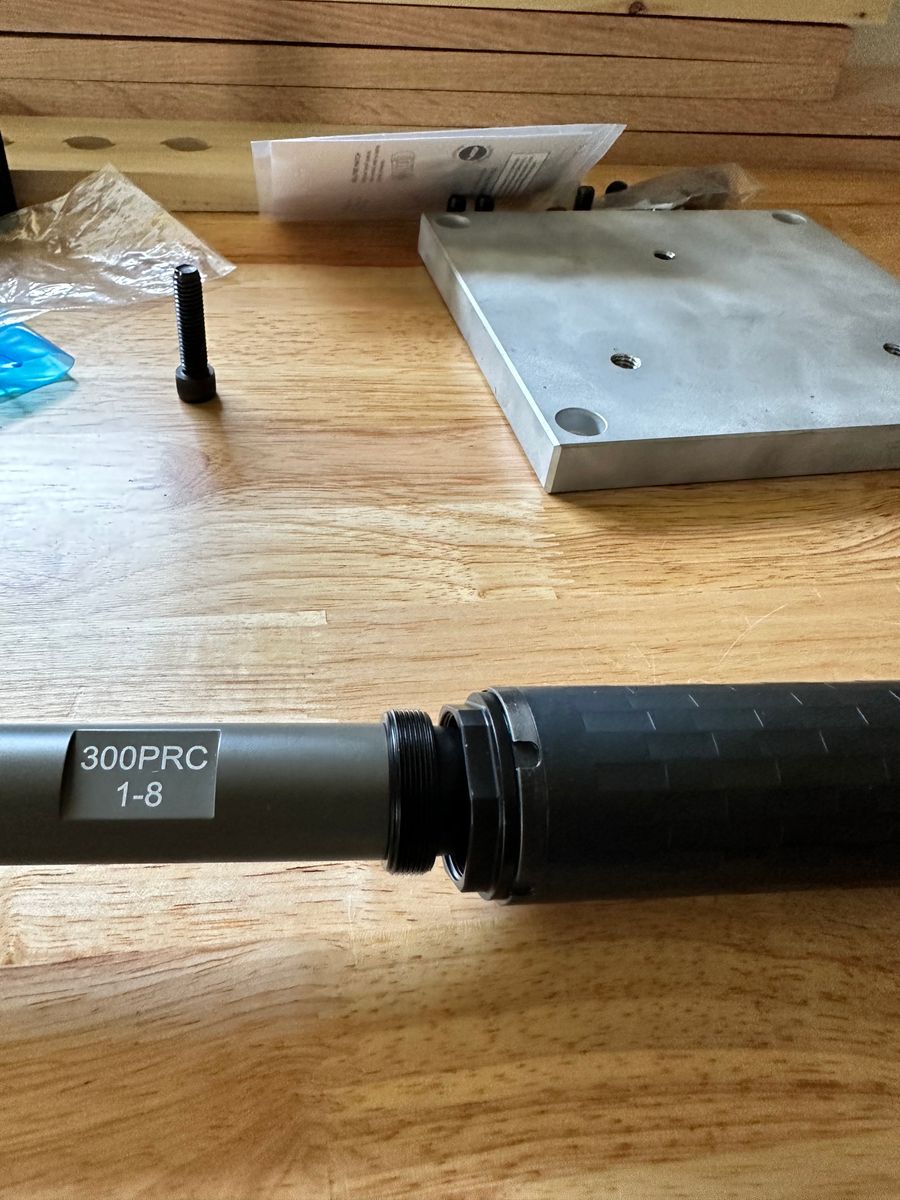

    Does what it’s supposed to. Can’t complain.
