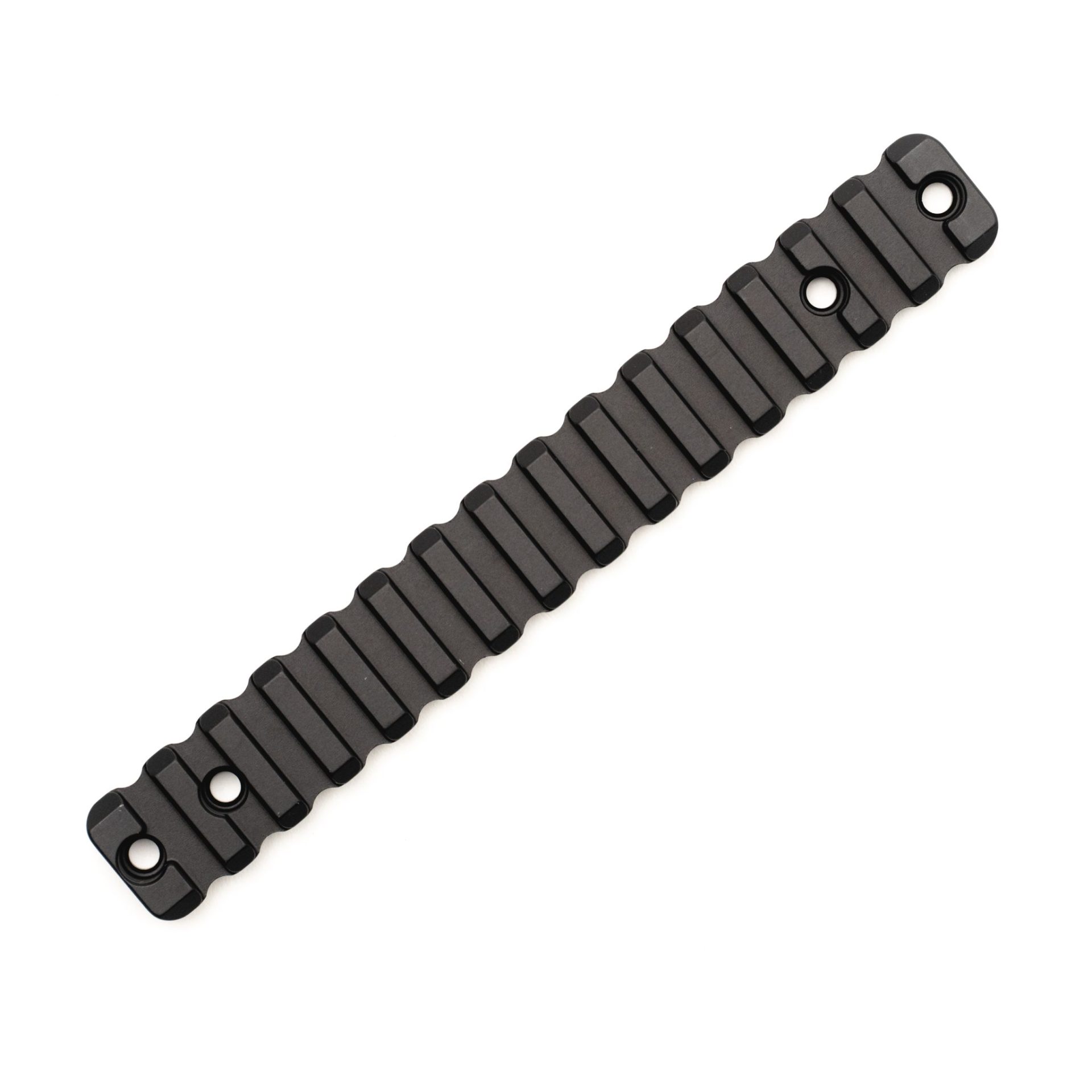

At Area 419 we decided that there were no scope bases on the market that really met our requirements for quality, so we made our own. Its all in the little details that set this base apart from the competition. These are machined in house on our 4-axis HAAS VMC from 7075 Aluminum. Straight off the mill there is not a single sharp edge left, all corners are radiused and any necessary harsh corners are chamfered. Just like all of the other Picatinny products we make, we radius between the slots, and also radius the corners of the lugs to prevent any snag areas and give it a cleaner look.
- Integral machined in recoil lug bears against the front receiver ring to prevent any base shifting under recoil
- Available in two versions, “Full Slotted” and “ARC Top”

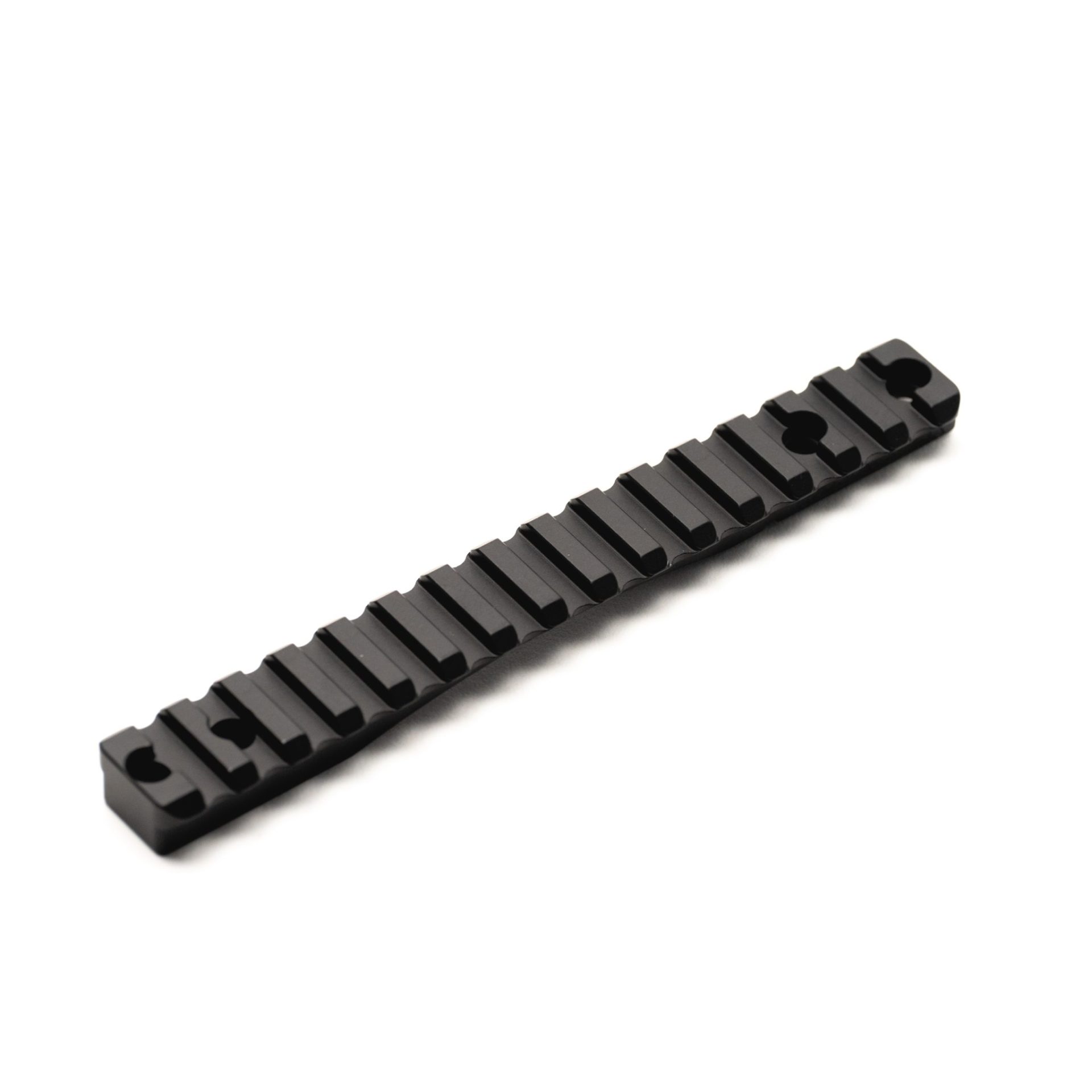

- Full Slotted is compatible with all picatinny scope mounts including Spuhr and MPA which have a recoil lug in the center of the mount

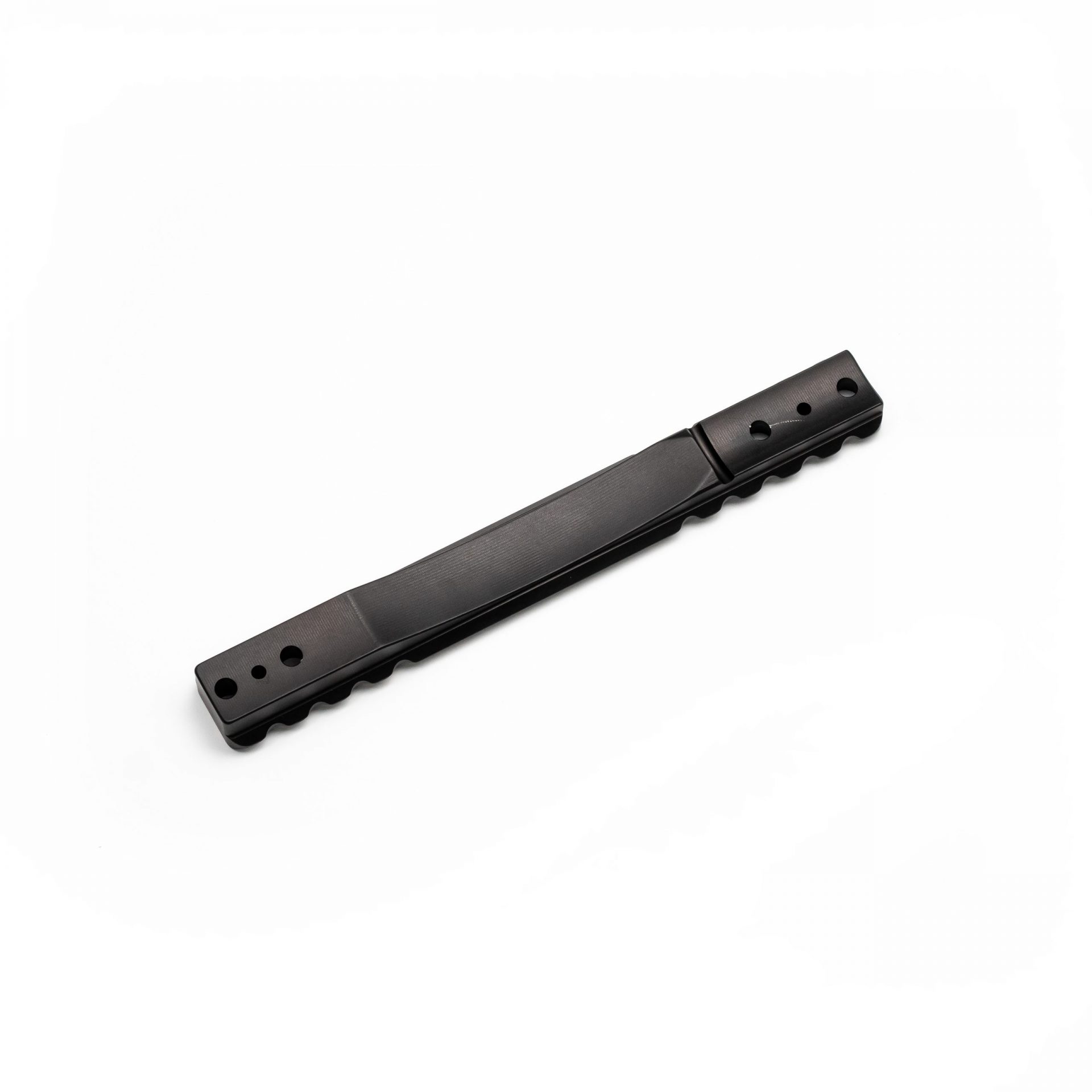

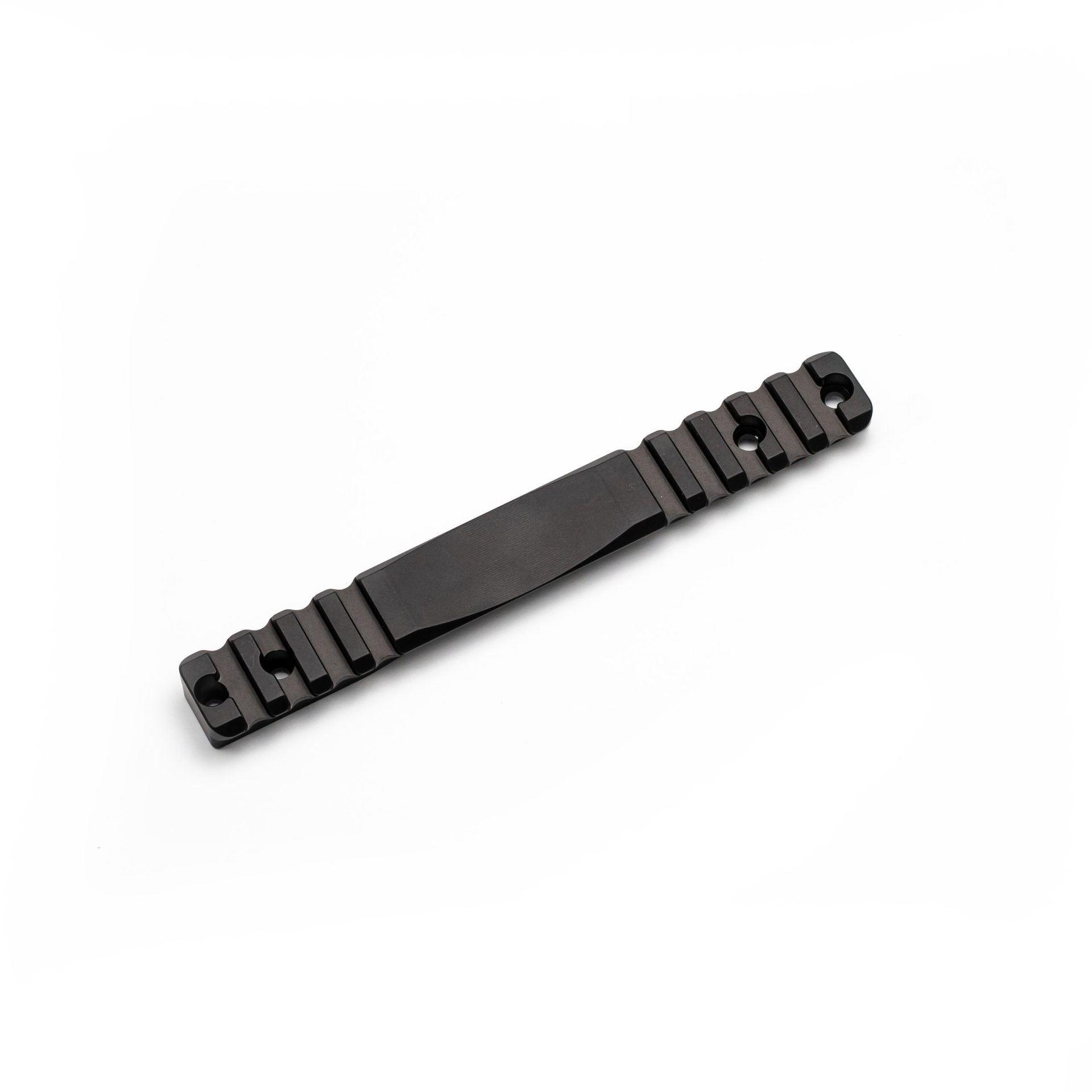

- ARC Top is an Area 419 original design, mainly for aesthetics just to set it apart (will not work with mounts like Spuhr or MPA)
- Compatible with #6 and #8 screws, no modification necessary

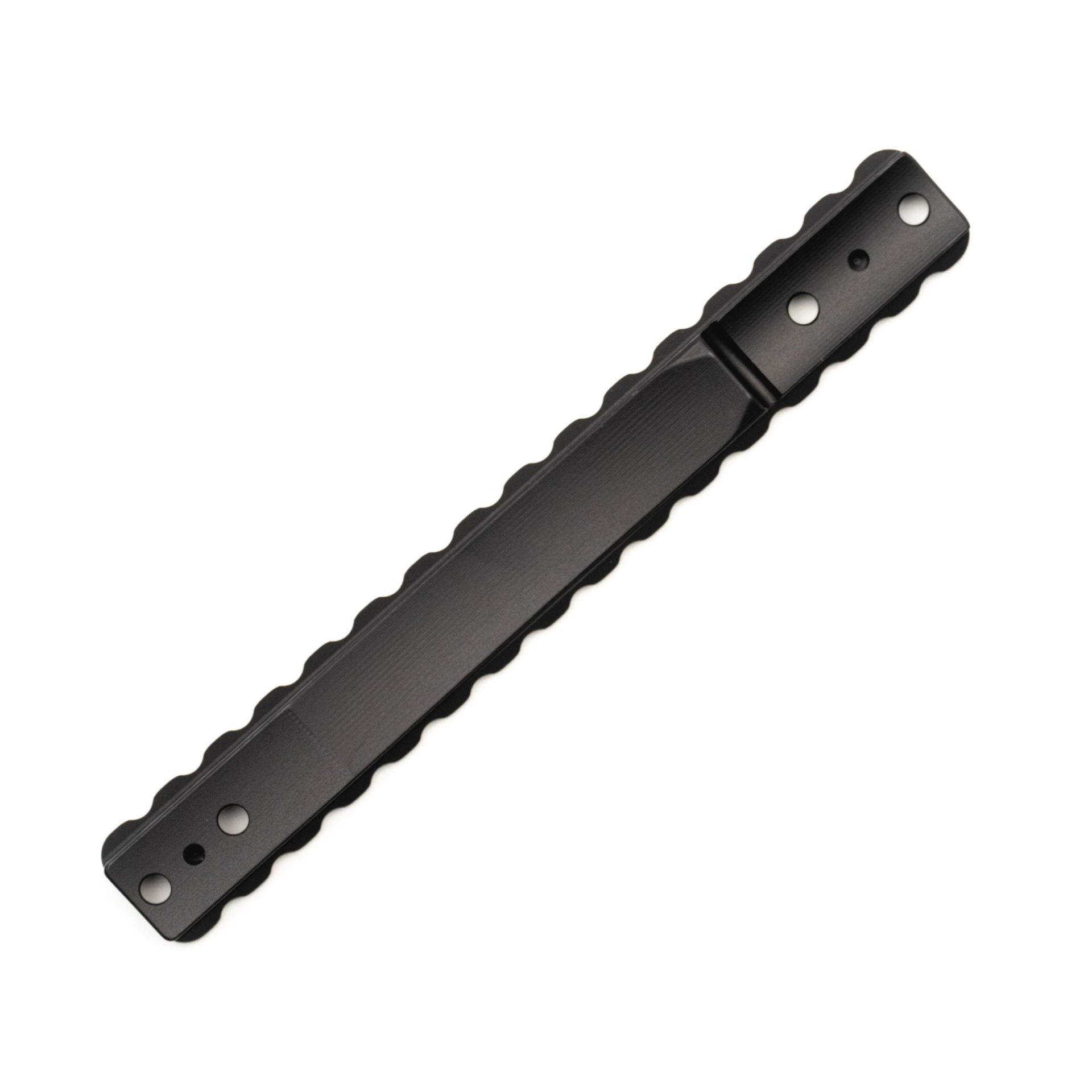

- All mating areas are 1:1 surface machined to exact profile of the Remington action for a solid fit
- The MOA angle of the base is guaranteed to be true to the spec due to advanced fixturing
- Machined to MIL-STD-1913

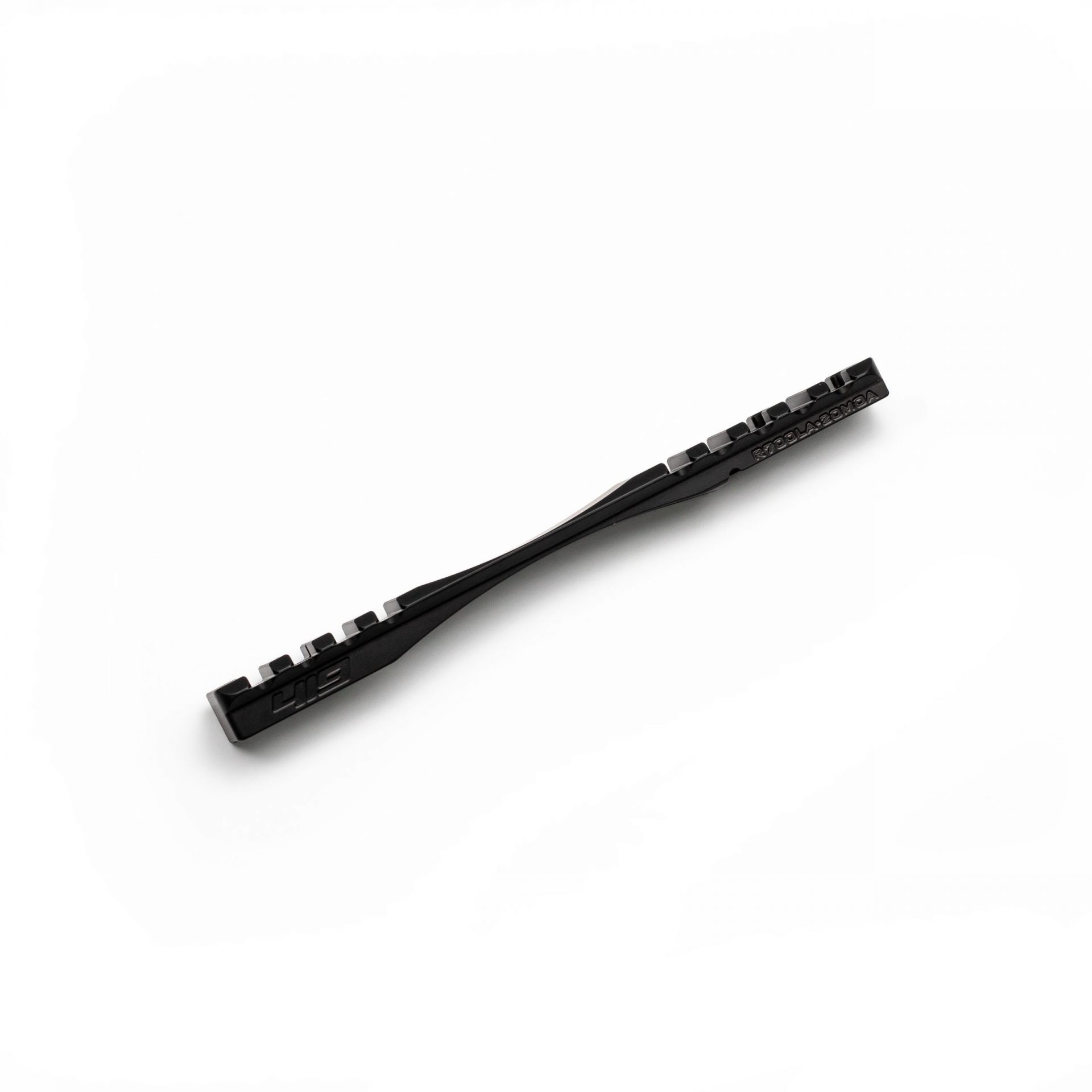

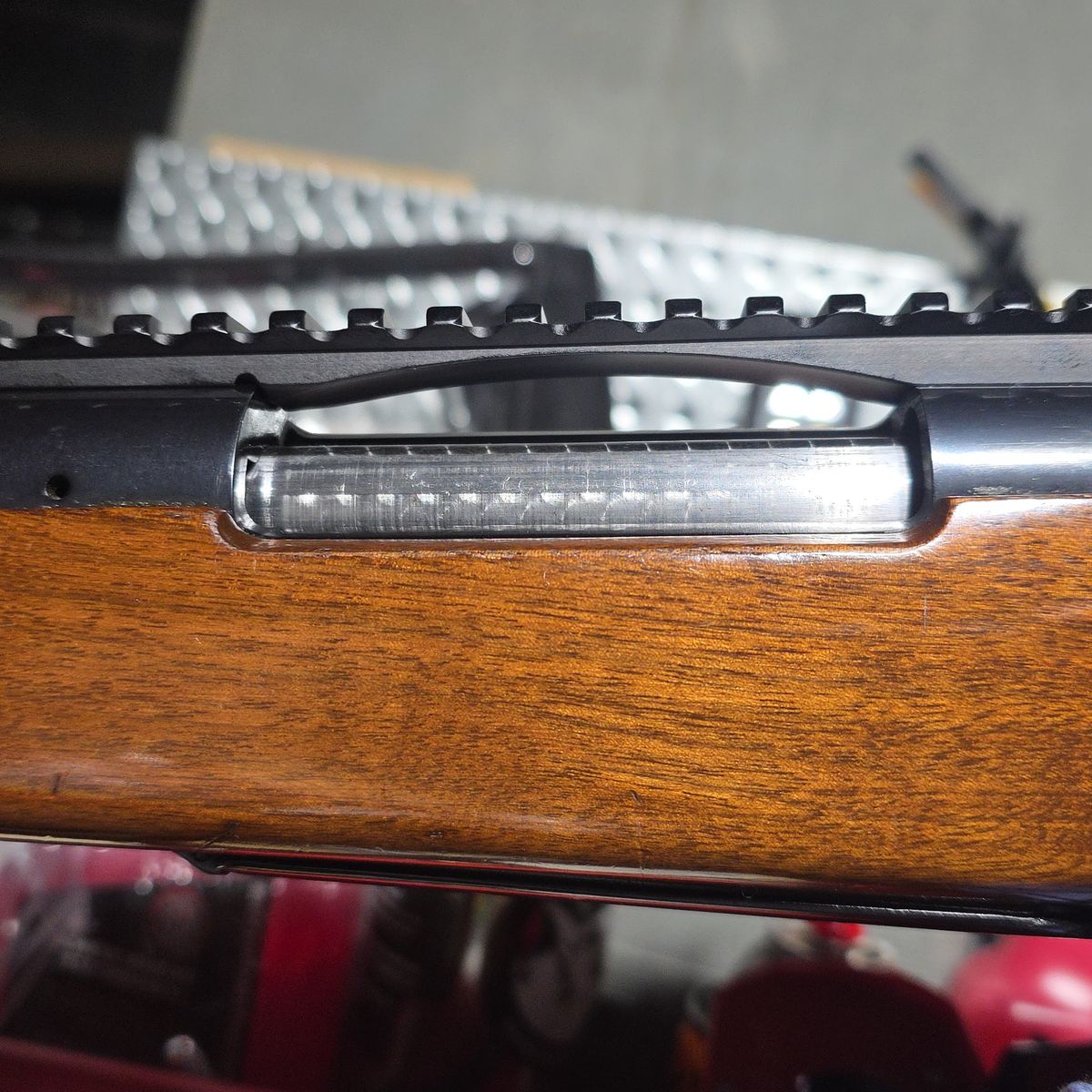

- Ejection port cut blends seamlessly into action and gives plenty of room for top loading ADL style rifles
- Type III Hardcoat Black anodized

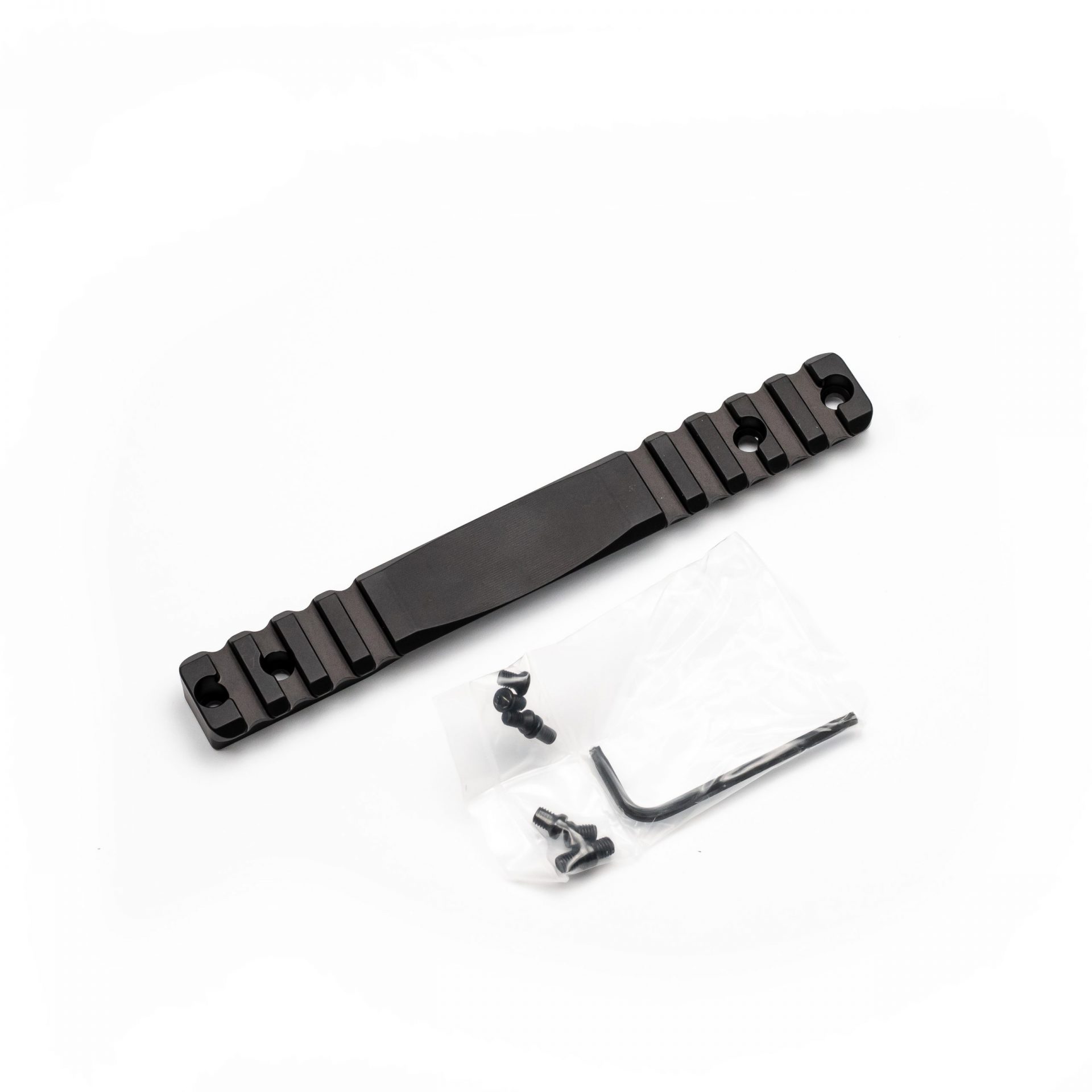

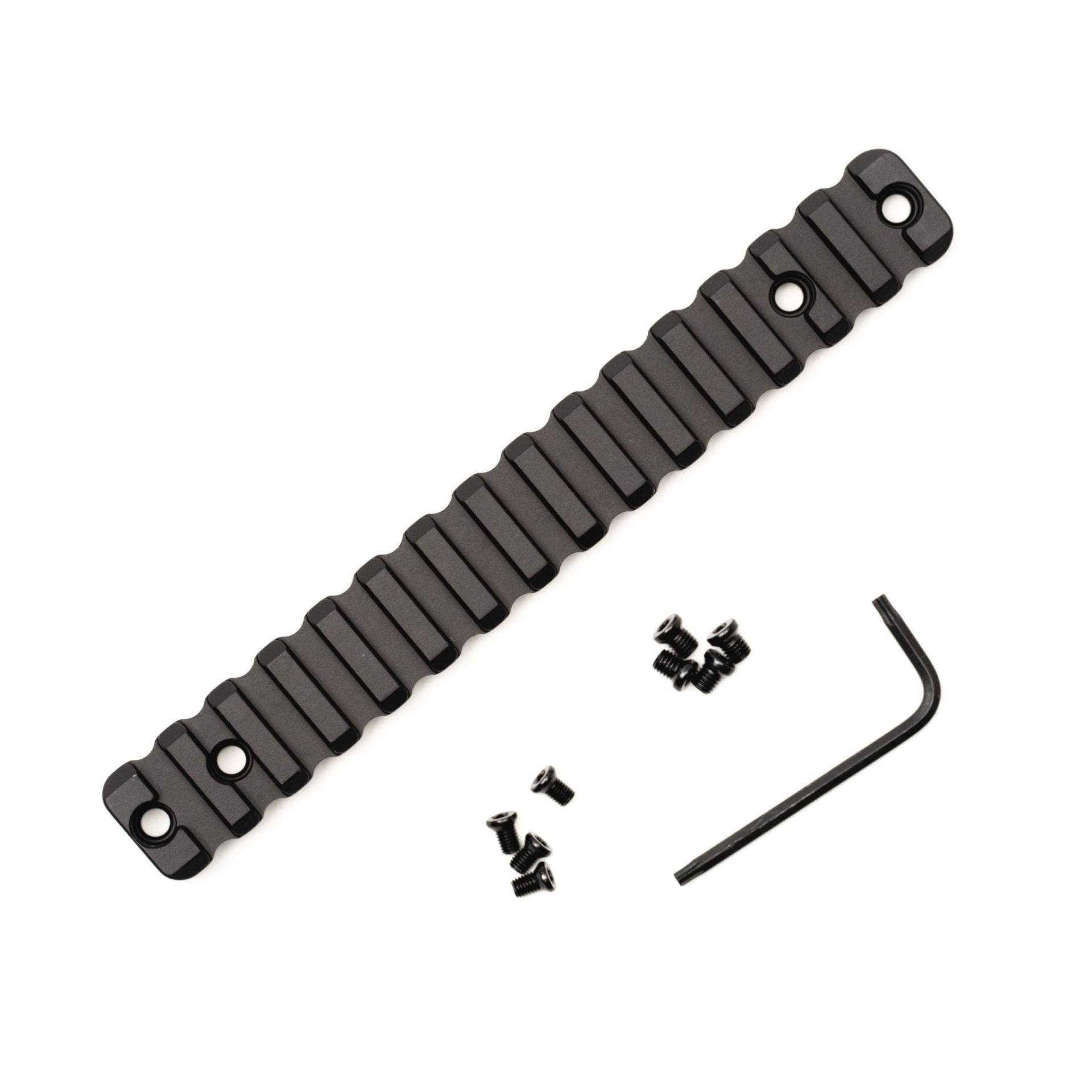

- (4) 6-48 and (4) 8-40 Torx T10 screws and wrench included
- All screws are the same length and sized to not interfere with barrel threads, no more guessing which screw goes where
- #6 Screws = 15in/lb
- #8 Screws = 20in/lb
TREY (verified owner) –
Excellent machining, fit to rem 700 action better than a badger previously installed. Highly recommended.
Ryan Backlas (verified owner) –
I’ve been through quite a few scope rails, generally in the same price range as well. Never had one that I didn’t have to bed, until I purchased this one. The fitment is spot on!
Timothy R. (verified owner) –

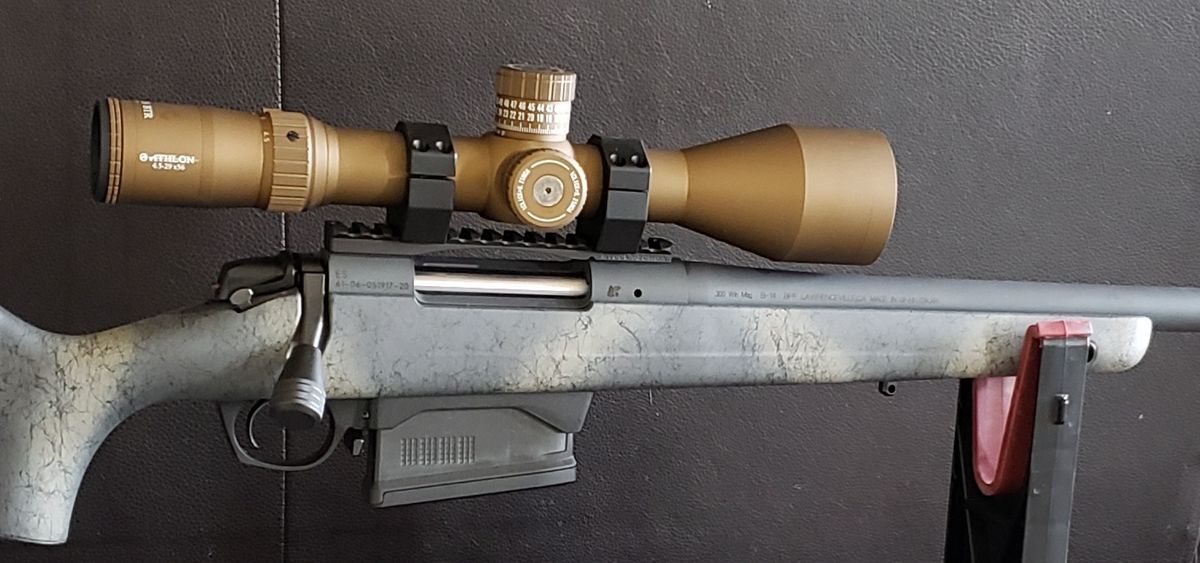

Put the 20moa rail on my Bergara Terrain. I bolted it down with both rear screws to see if it needed bedding. With the screws tight the front of the rail still laid flat on my receiver. I put loctite on the screws and torqued them down. The rail also has a integrated recoil lug that fit snug up against the receiver, no having to push the rail against the receiver and then tightening. I am a machinist by trade and this is a very nicely machined part, not a single sharp edge anywhere. For the money i don’t see ever buying from anyone else in the future.
Alex D. (verified owner) –
Great quality product.

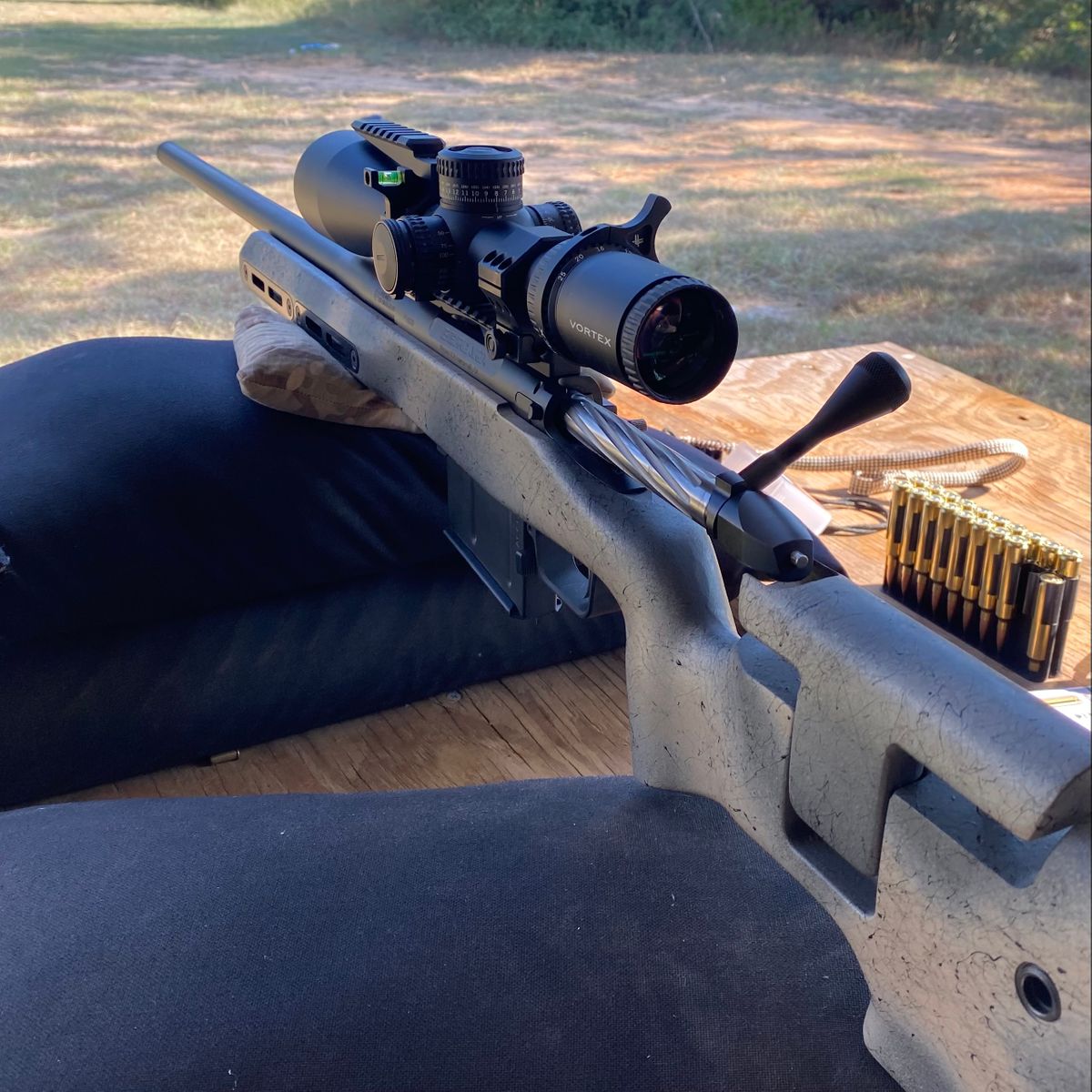

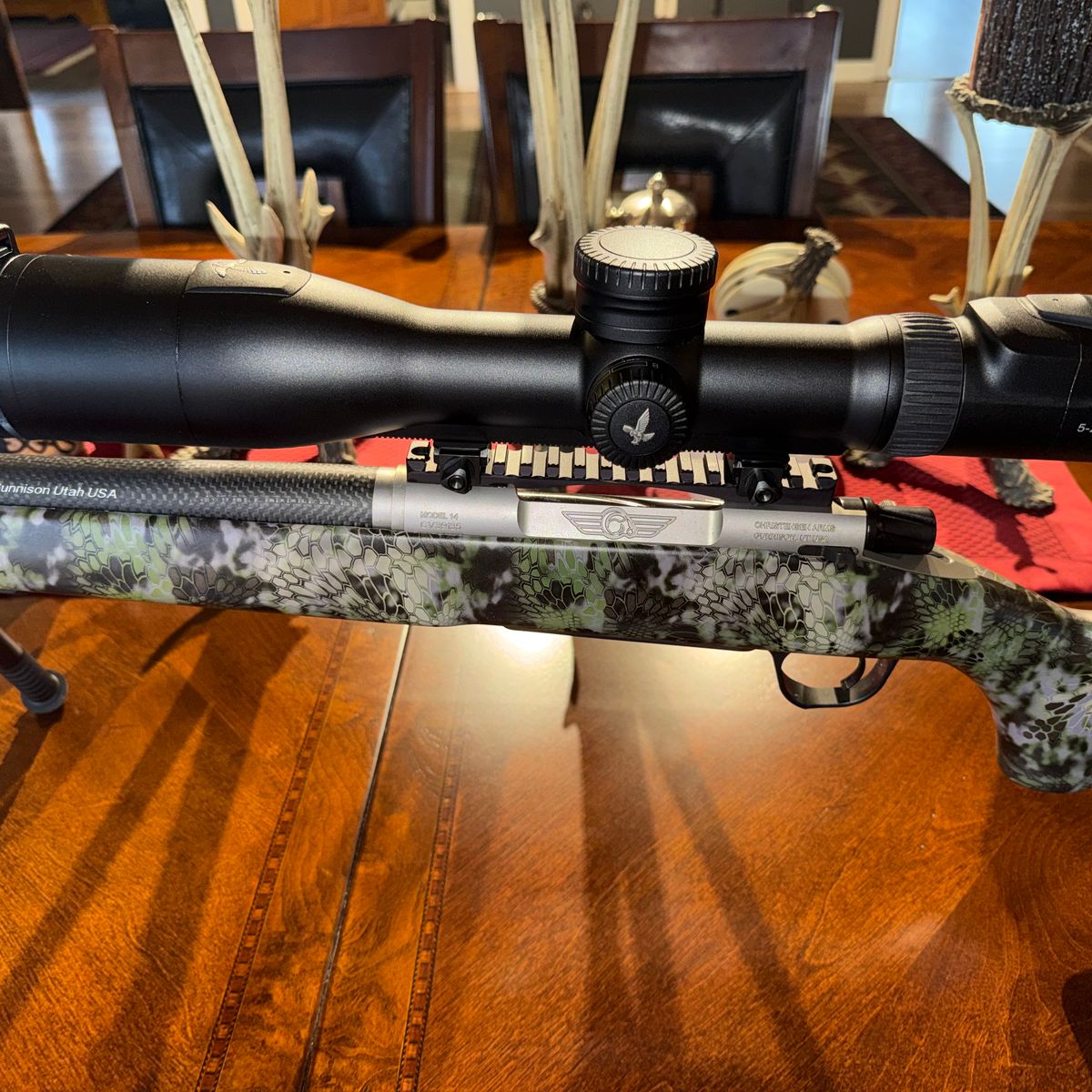

Uploaded image(s):
