THESE ITEMS HAVE MINOR COSMETIC BLEMISHES, BUT ARE 100% FUNCTIONAL. MANY BLEMS ARE PART OF ENGRAVING OR ANODIZE AND MAY NOT EVEN BE EASILY NOTICED.
When we set out to make an ideal scope ring, the things we knew we needed to accomplish, and do to a degree you won’t find anywhere else on the market, is to produce a reliable, and true capture of the optic. This led us down a rabbit-hole, ultimately arriving on a process that gets you serialized, final-bore matched rings, with raw aluminum internals, for a grip on your optic that is more reliable and more true than anything else made.
Like most rings, these begin as separate parts. We are making the bases and caps in batches. While many will make these parts, send them to anodize, and then just assemble, we produce around the extra steps. Once these parts return from anodize, they are fully assembled, placed back into specially produced rail fixtures, with the caps torqued to spec over specially made spacers (to give the rings space to torque down on the optic), and final-bored as sets in our world-class machining centers. Rings are then brought off the machine in sets, and placed into the laser to mark them as sets, with each set being uniquely identified as a match to its precision-bored counterparts.
Is it overkill? Probably. But we think it’s the right way. So that’s what we are going to do.
HOW TO INSTALL
SPECS
Material: 7075 Aerospace Grade Billet Aluminum (with Stainless Steel Hardware)
Coating: Type 3 Hardcoat Anodize (internal bore is raw aluminum)
Weight: 3.3oz/ring, 6.6oz/set (34mm Medium)
Initially available in 34mm diameter, 28mm height (Medium) and 30mm, 28mm Height (Medium) with more height and diameter options coming in early 2023.
Weight | 1 lbs |
---|---|
Dimensions | 5 × 4 × 2 in |
Diameter | 30mm, 34mm, 35mm, 36mm |

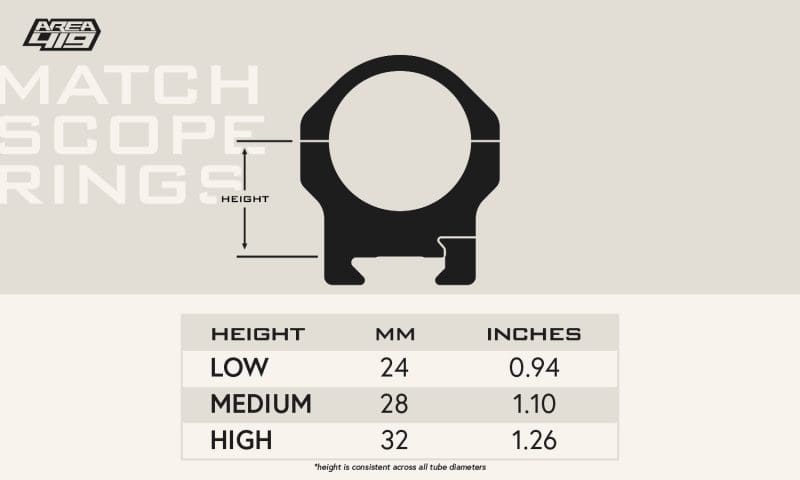

Height | Low, Medium, High |
Anonymous (verified owner) –
Great quality
Todd Stoughton (verified owner) –
If you know anything about tolerance stacking then you will absolutely appreciate these rings. When you are shooting out at 1200 yards little things like this make a big difference. These scope rings are paired and final machined which is where the tolerance stack up comes into play. I looked at a lot of scope rings and these Area 419 rings are the only ones that offer this level of accuracy. These will be paired with a Nightforce scope and the way that they mount to the rail via three points and the final machine will make any excuse for not hitting the target the shooters fault, not the scope. 😀
Zachary L. (verified owner) –
SUper nice. The serial number off a bit was what I noticed, super nice.
