Parts and Accessories / Muzzle Devices

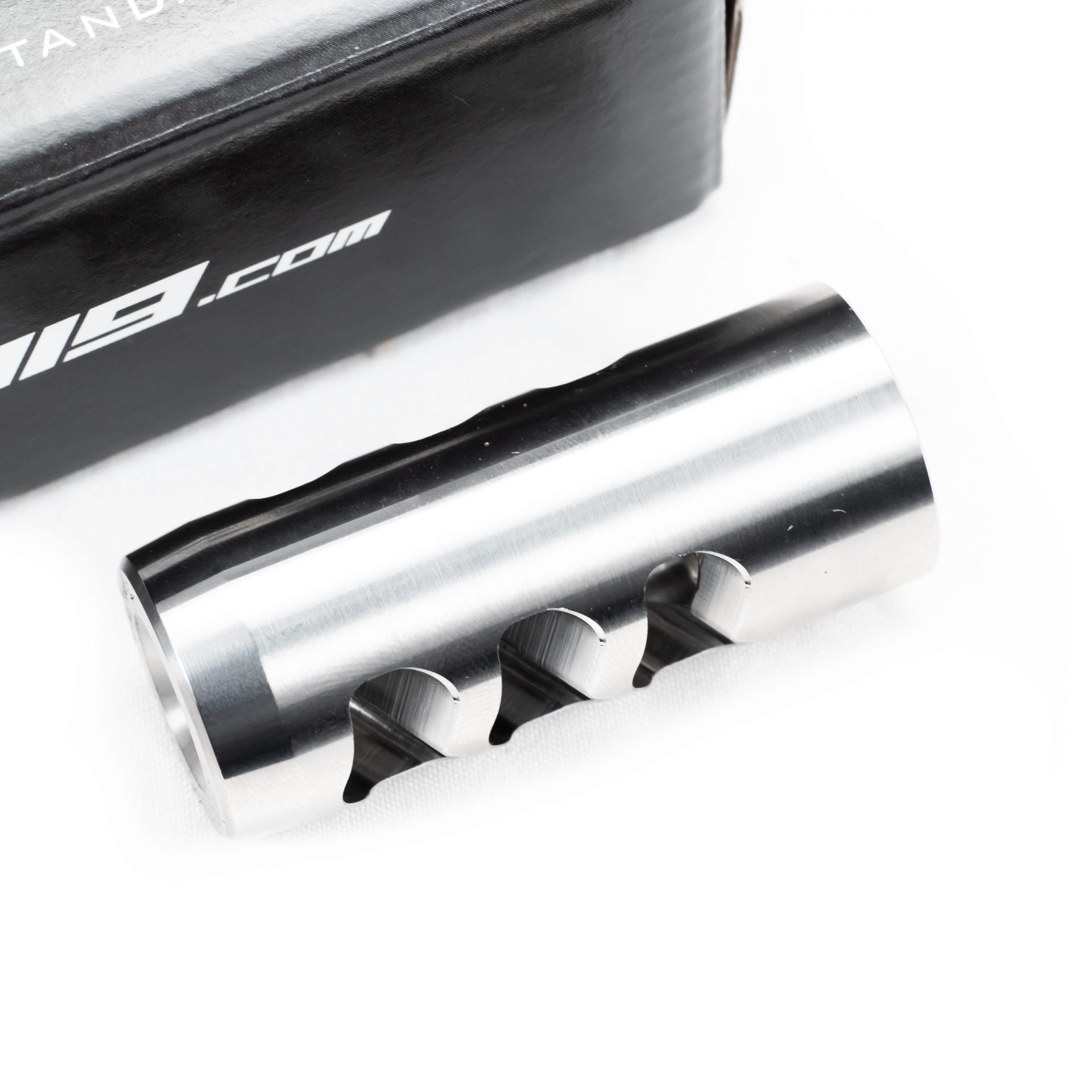

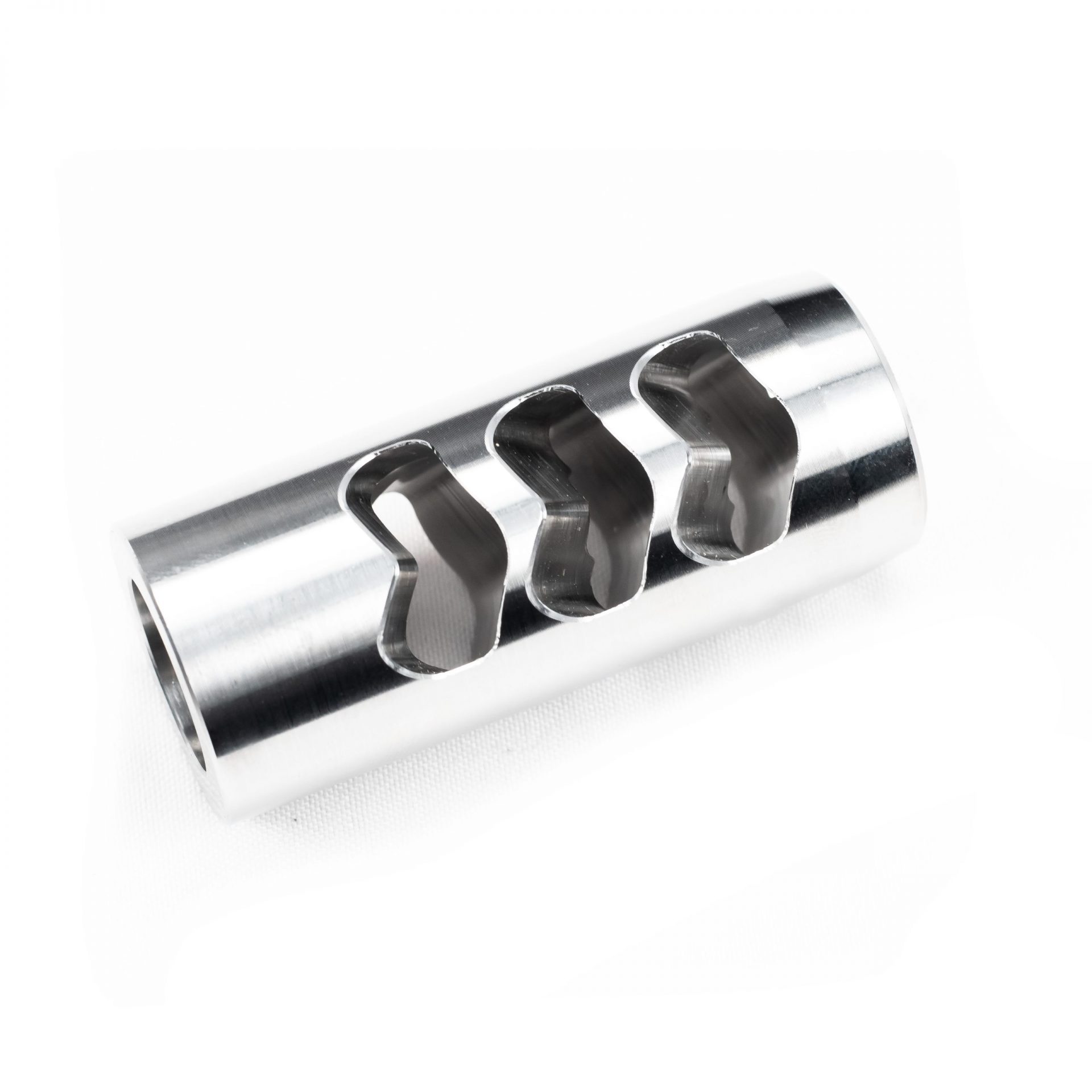

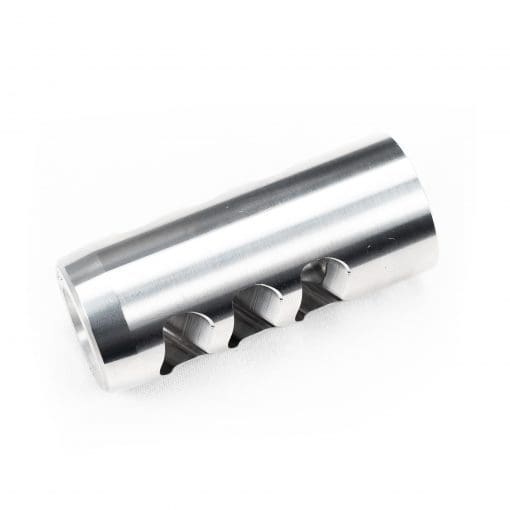

HELLFIRE Direct Thread Brake

Rated 5.00 out of 5 based on 2 customer ratings

$110.00 – $124.99

Clear
Menu
  • Products
    • Reloading Gear
      • Funnel Kits
      • Reloading Dies
      • Reloading Trays
      • The ZERO System
    • Parts and Accessories
      • ARCALOCK System
      • Bipods and Rails
      • Muzzle Devices
      • Shooting Bags and Range Gear
      • Tools and Electronics
    • Core Rifle Components
      • Actions
      • Barrels
      • Scope Mounts and Rings
      • Stocks and Chassis
      • Magazines and Extensions
      • Triggers
    • Apparel and Merchandise
      • Hats and Shirts
      • Patches and Stickers
  • Area 419 Exclusives
    • The ZERO Reloading Press
    • The Hellfire Match
    • The Maverick
    • ARCALOCK System
    • 419 Scope Mount System
    • RailChanger System
    • Master Funnel Kit
    • Performance Packages
  • Brands
    • –
      • Accuracy International
      • Accurate Mag
      • American Rifle Company
      • Area 419
      • Armageddon Gear
      • B&T Industries
      • Cole-Tac
      • Defiance Machine
    • –
      • Harris Engineering
      • Hawk Hill
      • Microtech
      • Manners Composite Stocks
      • Ranger Wrap
      • Tenebraex
      • TriggerTech
Featured Products
  • The ZERO Reloading Press
    Rated 4.98 out of 5
    $1,275.00
  • TriggerTech Diamond Triggers
    Rated 4.89 out of 5
    $304.99 – $334.99
Description

– Rearward facing ports for the ultimate in recoil reduction.

– Unique port design controls muzzle rise without the use of top porting.

– Made from 17-4PH Stainless Steel in the USA

– All turning operations on the brake are done in one operation on a Swiss style CNC for the utmost in concentricity between threads and bore

– You will not find a brake with better machine work on it, I guarantee it.  No sandblasting to cover up tooling marks.  100% as they come off the machine.

– Ports are 3d chamfered on the mill.  No sharp edges or hand deburring here.

– Available in 5/8-24 thread mount currently.  Class 2B threads

– Professional installation required for a seamless installation.
   Alternatively, I can supply peel washers .  **You will have a gap between barrel and brake with this method.

– 0.080″ Thread counterbore to allow shouldering up on muzzle threads that have no thread relief

– 0.600″ thread length.  Beyond the threads is a 30 degree taper flowing into the port.  Ive always hated the look of seeing threads going into the first baffle, and they get loaded up with carbon much easier.

– 1″ OD

– Minimum shoulder diameter is 0.725″

– Brakes come pre-bored to .275″. Use of this brake on anything larger than a 6.5mm without opening up the bore is not recommended.

– Port area should remain full 1″ diameter for ultimate recoil reduction, however you can turn the port area down to 0.830″  MINIMUM

– NOTE:  If you need 100% of the 1.00″ diameter to blend into a large barrel, please let me know this.  This first run of brakes got a healthier chamfer on the back than I would like, it was supposed to just be an edge break to avoid cut hands.  I will make sure the brake you get has no chamfer on the back in this situation.



Testimonial from one early tester: “I compared one to the APA little bastard and the Insight brake one night. In a non scientific test, it’s equal to the APA recoil wise. There’s also no real muzzle rise on it.”

Additional information
Weight .5 lbs
Dimensions 6 × 3.5 × 2 in
Manufacturer

Area 419

Installation Type

Gunsmith, Peel Washer

Reviews (2)

2 reviews for HELLFIRE Direct Thread Brake

  1. Rated 5 out of 5

    Thomas P. (verified owner) – July 22, 2021

    The brake looks very well designed & made. Its why I bought it to begin with. It didn’t disappoint. It hasn’t been installed yet.

  2. Rated 5 out of 5

    Scott D. (verified owner) – November 29, 2022

    As with all Area 419 components, fit and finish are impeccable.
