Description
THIS PAGE LISTS AND SELLS ONLY BIPODS WITHOUT CLAMPS – FOR A BIPOD READY TO BE USED ON YOUR RIFLE – HEAD HERE!
BT10-ARCA V8 Atlas Bipod
- Mounts directly to any Arca or Arcalock spec rail.
- Height Range approximately 4.75 – 9.0″.
- 15 degrees +/- of preloaded Pan.
- 15 degrees +/- of preloaded Cant.
- Leg positions are; stowed back, 45 degrees angled back, 90 degrees straight down, 45 degrees forward and stowed forward.
- Weight 12.7 ounces.
- Footprint spread 8″– 11″
- Available in black only
- Made in America
- Construction from T6061 Aluminum, Hard Anodized black
- Stainless steel springs and fasteners
- UHMW components used for smooth tracking
- Preload on Pan and Cant can be tightened by means of the knurled knob
- Non orientated leg positioning use either hand to move leg into any of the four leg positions
- Leg positions are; stowed back, 90 degrees straight down, 45 degrees forward and stowed forward.
- All 4 leg positions are solid allowing the shooter to load the bipod at the 45 and 90 degree positions.
- Non orientated leg length adjustment, Outer leg slides on the Inner leg locating on any of five positions ¾” apart and can be done by either hand.
- Optional 3” leg extensions to increase height available.
- Standard soft durable Rubber feet that are suitable for many surfaces.
- Optional interchangeable Ski and Multi Spiked style feet can be swapped in the field with the press of a ball plunger with a bullet tip.
- Optional mounting systems available for Accuracy International and Sako rifles.
- Estimated range of elevation on the BT10 is 5-9” from the surface up to the rail.
- Made in America
BT46-ARCA PSR Atlas Bipod: Additional features
- Fore and Aft pivot limiting Bosses*
- Non-Rotating Legs: outer leg does not rotate around inner leg*
- Strengthened Leg Boss*
- Inner Leg constructed from T7075*
- Weight 13.61 ounces.

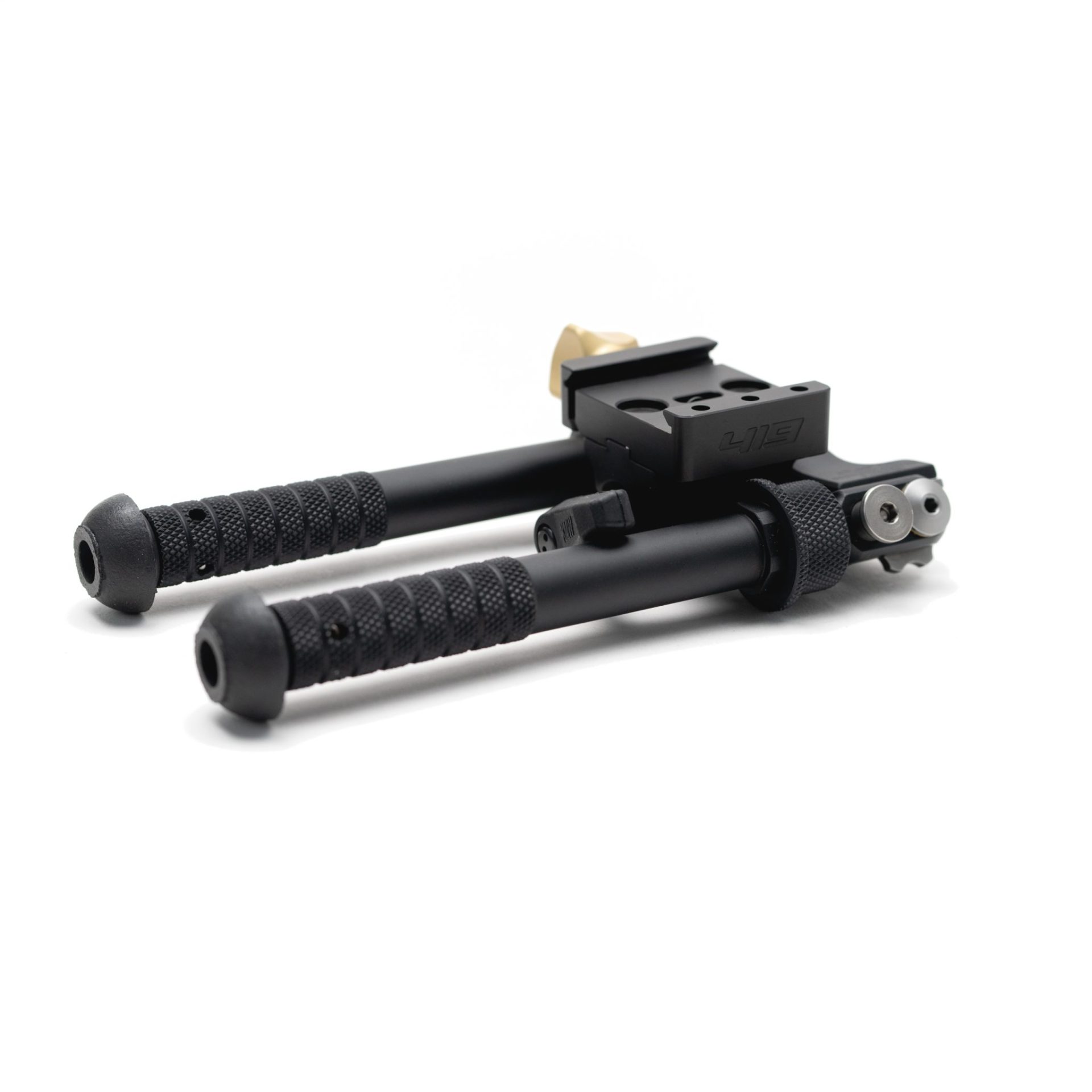

BT65-ARCA Gen. 2 CAL Atlas Bipod
- The BT65-ARCA CAL (Cant And Loc) Atlas Bipod
- Height Range: 4.75 – 9.0″ approx.
- Cant: 15 degrees +/-
- 5 leg positions: 0, 45, 90, 135 and 180 degrees
- Non-Rotating Legs: outer leg does not rotate around inner leg
- Larger, stronger inner legs
- Weight: 13.296 ounces
- Footprint: 9.75 – 13″
Atlas Bipods Comparison
V8 | PSR | 5-H | CAL | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Links | BT10 | BT10-NC | BT10-LW17 | BT46-NC | BT46-LW17 | BT47-NC | BT47-LW17 | BT35-NC | BT35-LW17 | BT65 | BT65-NC | BT65-LW17 |
HEIGHT RANGE | 4.75 – 9.0″ | 4.75 – 9.0″ | 4.75 – 9.0″ | 4.75 – 9.0″ | 4.75 – 9.0″ | 7.0 – 13.0″ | 7.0 – 13.0″ | 5.5 – 10.5″ | 5.5 – 10.5″ | 4.75 – 9.0″ | 4.75 – 9.0″ | 4.75 – 9.0″ |
WEIGHT | 11.0 oz | 10.8 oz | 12.7 oz | 11.42 oz | 13.61 oz | 12.86 oz | 15.13 oz | 25.0 oz | 27.2 oz | 12.87 oz | 12.65 oz | 14.57 oz |
OPTIONAL FEET | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
MOUNTING OPTIONS | 2 screw clamp on included | BT19, BT21, ADM-170-S, ARMS17S, TRAMP, LT271 [none included] | Quick Detach Lever included | BT19, BT21, ADM-170-S, ARMS17S, TRAMP, LT271 [none included] | Quick Detach Lever included | BT19, BT21, ADM-170-S, ARMS17S, TRAMP, LT271 [none included] | Quick Detach Lever included | BT19, BT21, ADM-170-S, ARMS17S, TRAMP, LT271 [none included] | Quick Detach Lever included | 2 screw clamp on included | BT19, BT21, ADM-170-S, ARMS17S, TRAMP, LT271 [none included] | Quick Detatch Lever included |
NON- ROTATING LEGS* | NO | NO | NO | YES | YES | YES | YES | YES | YES | YES | YES | YES |
90° FOOTPRINT SPREAD (approximate) | 8-11″ | 8-11″ | 8-11″ | 8-11″ | 8-11″ | 10 – 14.5″ | 10 – 14.5″ | 14.5 – 19.5″ | 14.5 – 19.5″ | 9-12.5″ | 9-12.5″ | 9-12.5″ |
FOLDED WIDTH | 2.88″ | 2.88″ | 2.88″ | 2.88″ | 2.88″ | 2.88″ | 2.88″ | 5.9″ | 5.9″ | 3.69″ | 3.69″ | 3.69″ |
45° LEG POSITION | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
TOTAL LEG POSITIONS | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
PAN | 15°+/- 30° total |
15°+/- 30° total |
15°+/- 30° total |
15°+/- 30° total |
15°+/- 30° total |
15°+/- 30° total |
15°+/- 30° total |
15°+/- 30° total |
15°+/- 30° total |
NO | NO | NO |
CANT | 15°+/- 30° total |
15°+/- 30° total |
15°+/- 30° total |
15°+/- 30° total |
15°+/- 30° total |
15°+/- 30° total |
15°+/- 30° total |
15°+/- 30° total |
15°+/- 30° total |
15°+/- 30° total |
15°+/- 30° total |
15°+/- 30° total |
ADJUSTABLE PAN/CANT TENSION | YES | YES | YES | YES | YES | YES | YES | YES | YES | Adjustable Preloaded Cant Only | Adjustable Preloaded Cant Only | Adjustable Preloaded Cant Only |
FORE/AFT LIMITING BOSSES | NO | NO | NO | YES | YES | YES | YES | NO | NO | NO | NO | NO |
INNER LEG MATERIAL | 6061-T6 Aluminum | 6061-T6 Aluminum | 6061-T6 Aluminum | 7075-T6 Aluminum | 7075-T6 Aluminum | 7075-T6 Aluminum | 7075-T6 Aluminum | 6061-T6 Aluminum | 6061-T6 Aluminum | 6061-T6 Aluminum | 6061-T6 Aluminum | 6061-T6 Aluminum |
COST | $219.95 | $219.95 | $279.95 | $259.95 | $319.95 | $279.95 | $339.95 | $389.95 | $449.95 | $239.95 | $239.95 | $299.95 |
Additional information
Weight | 3 lbs |
---|---|
Dimensions | 10 × 6 × 2 in |
Model | V8 – BT10, PSR – BT46, CAL – BT65, SUPER CAL – BT72 |
