Muzzle Threading

**PLEASE FILL OUT YOUR SERVICE ORDER FORM (Download link available at purchase confirmation screen and in confirmation email) AND INCLUDE IT WITH PARTS WHEN SENT TO AREA 419**

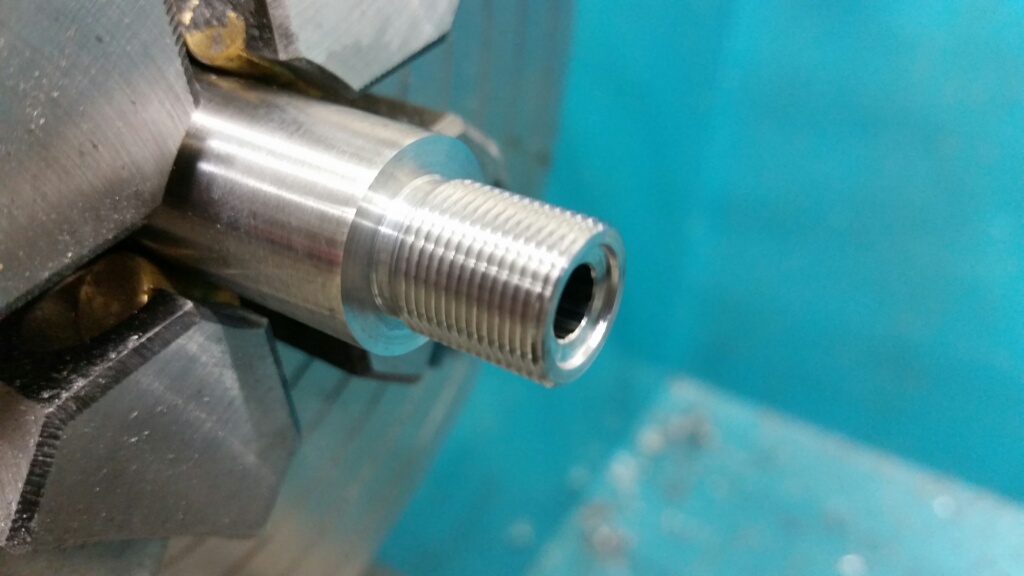

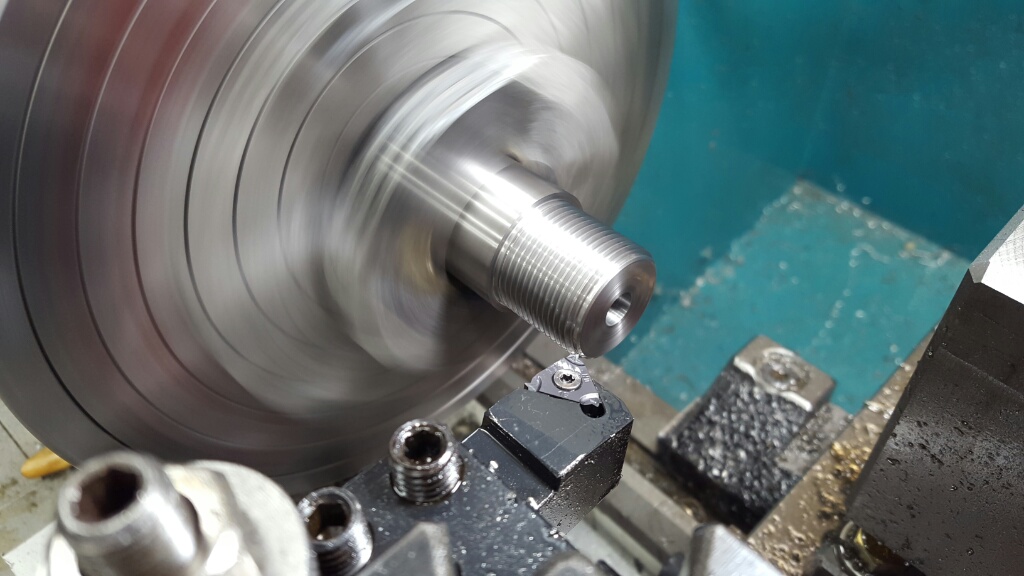

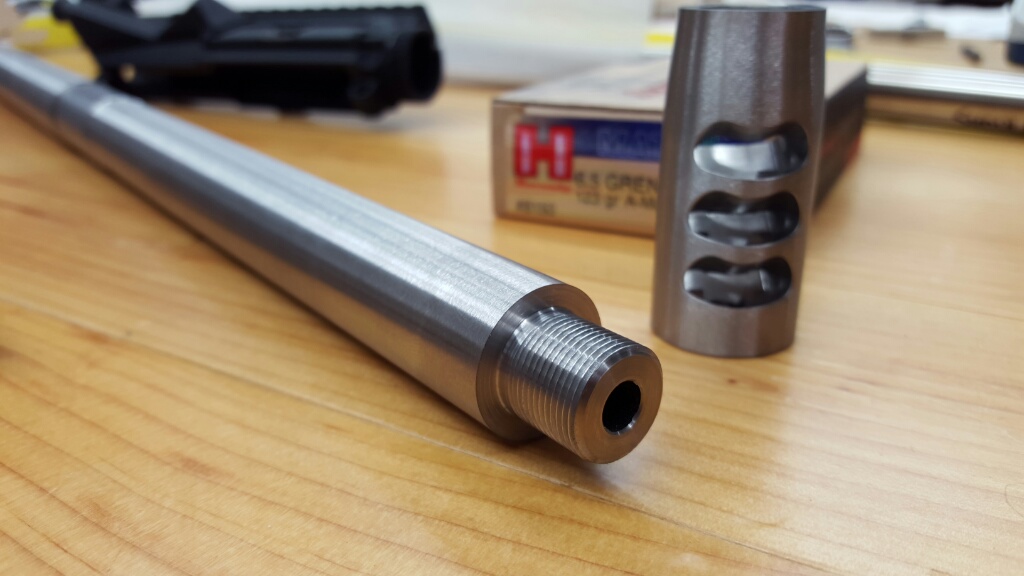

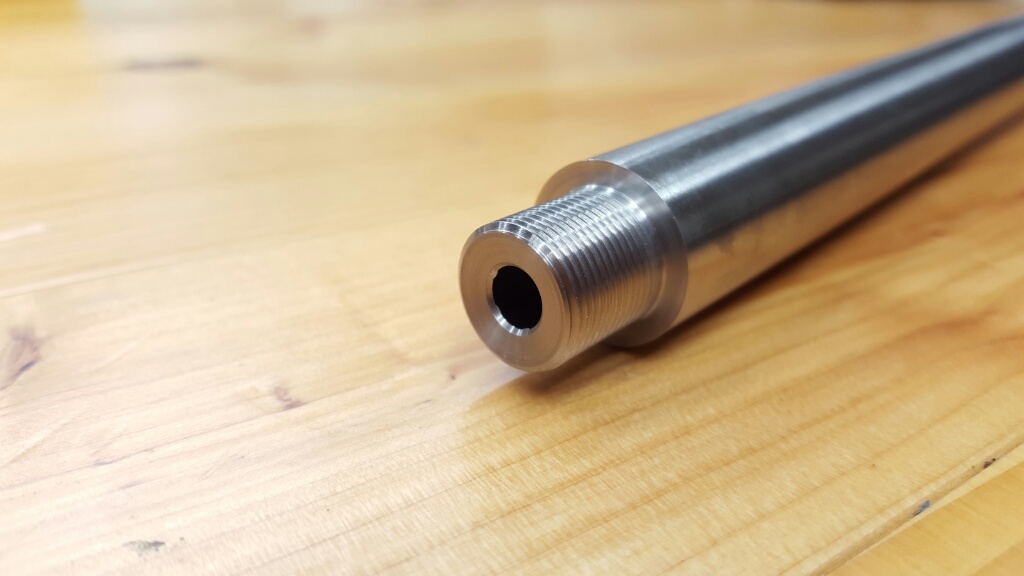

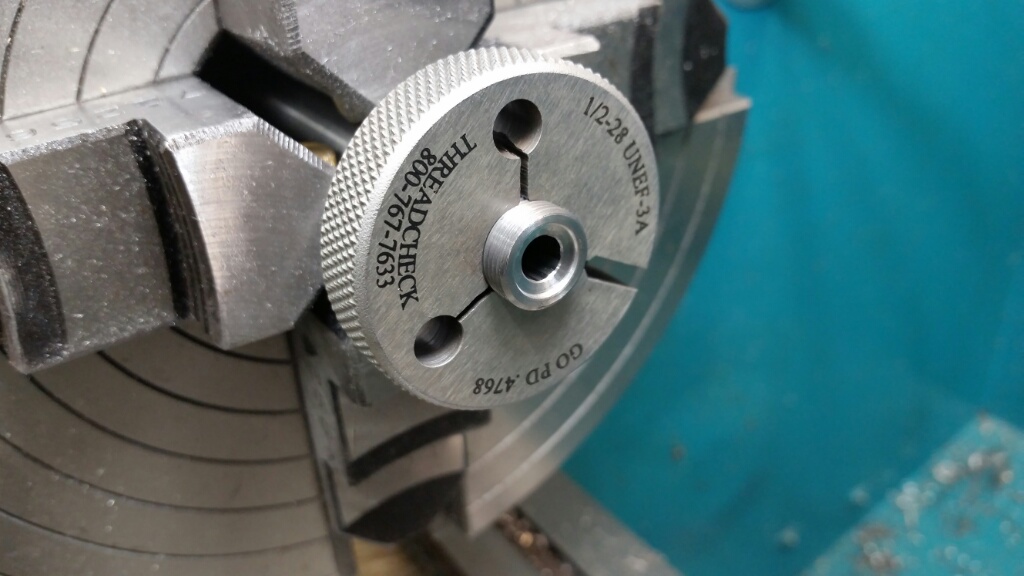

Muzzle threading is performed on the lathe with a single point carbide threading tool.  The barrel is indicated coaxially to within 0.0002″ of bore centerline. Threads are cut to a class 3A fit, you’ll find almost no “wobble” when installing muzzle devices with these threads.  Area 419 cuts 100% of our threads to a SPEC, not to a muzzle device (ie brake).  This means you will never have an issue threading a class 3 threaded suppressor onto your muzzle that was threaded for a class 2 brake.  Threads are gaged with either calibrated ring gages or a Mitutoyo thread micrometer to ensure they are within spec.

IMPORTANT: Unless specifically noted, services do not include the product to be altered. For instance, an action truing does not include an action and a barrel chambering does not include the cost of a barrel. These items are available for purchase, or can be shipped to Area 419 for service.

NOTES:

• Excessively dirty barrels will be charged a fee for cleaning.  A very clean bore is essential to indicating the barrel in for threading.
• Barrels less than 24″ from muzzle to recoil lug will be assessed a fee on a case by case basis.  These barrels will need removed from the receiver in order to properly indicate in the lathe.  Fee will vary based on difficulty of removal from receiver.

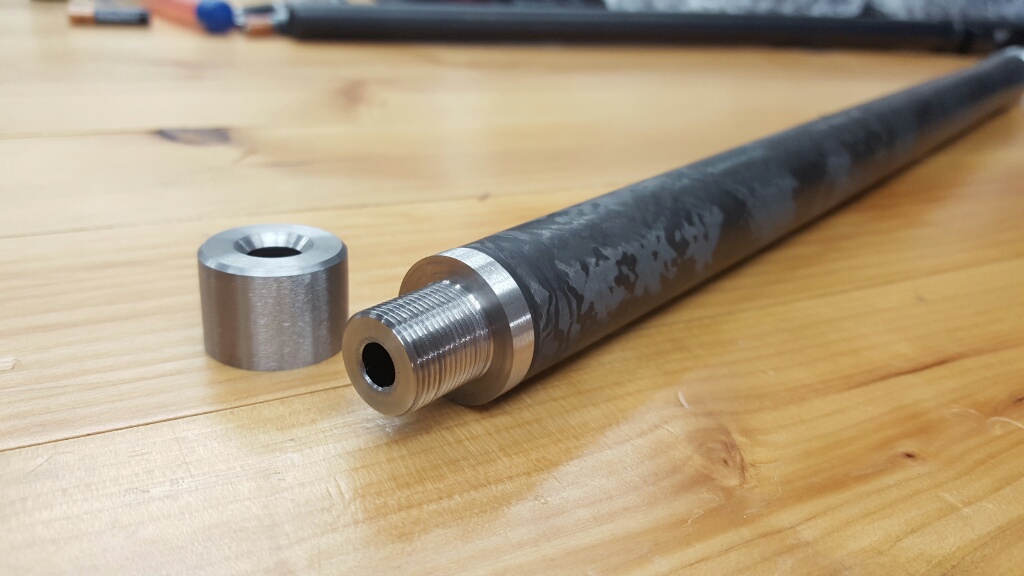

• Proof Research and other carbon fiber wrapped barrels will be assessed a $50 upcharge due to additional fixturing and time required to thread.
