Home / Services / Actions

Action Truing

$300.00

Out of stock

Notify me when item is back in stock

Menu
  • Products
    • Core Rifle Components
      • Complete Builds
      • Actions
      • Barrels
      • Triggers
      • Stocks and Chassis
      • Optics
      • Scope Mounts and Rings
    • Parts and Accessories
      • Muzzle Devices
      • ARCA Rails and Accessories
      • Bipods and Rails
      • Magazines and Extensions
      • Tools and Electronics
      • Gunsmithing & Misc
      • Shooting Bags and Range Gear
    • Reloading Gear
      • The ZERO Reloading Press
      • Funnel Kits
      • Auto Trickler Accessories
      • Reloading Trays
      • Die Blocks
    • Apparel and Merchandise
      • Hats and Shirts
      • Patches and Stickers
      • Drinkware
  • Area 419 Exclusives
    • The Maverick
    • The Hellfire
    • ARCA Lock
    • The RailChanger System
    • Master Funnel Kit
    • Performance Packages
  • Brands
    • –
      • Accuracy International
      • Accurate Mag
      • American Rifle Company
      • Area 419
      • Armageddon Gear
      • B&T Industries
      • Bartlein
      • Bix’n Andy
      • Cole-Tac
      • Curtis Custom
    • –
      • Defiance Machine
      • Harris Engineering
      • Hawk Hill
      • Kahles
      • Magnetospeed
      • Manners Composite Stocks
      • Tenebraex
      • Timney Triggers
      • TriggerTech
Featured Products
  • The ZERO Reloading Press
    Rated 5.00 out of 5
    $1,200.00
  • TriggerTech Diamond Triggers
    Rated 4.83 out of 5
    $275.00 – $315.00
  • Description
  • Additional information
  • Reviews (0)

This service is temporarily unavailable.  Sorry for any inconvenience this may cause.



**PLEASE FILL OUT YOUR SERVICE ORDER FORM (Download link available at purchase confirmation screen and in confirmation email) AND INCLUDE IT WITH PARTS WHEN SENT TO AREA 419**

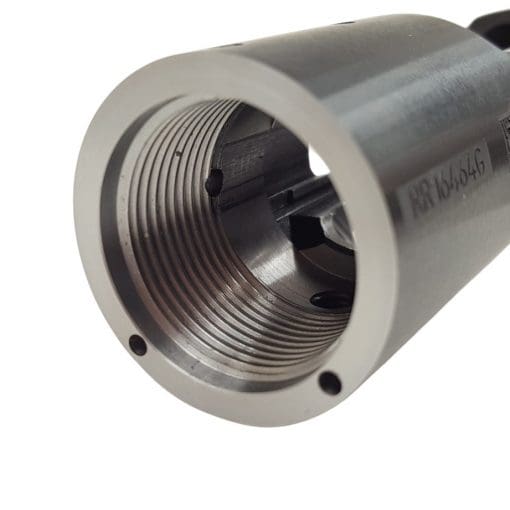

Actions are set up in lathe in a coaxially adjustable jig, they are then dialed to within 0.0002″ of parallel with lathe spindle. Action face is measured for runout and recorded.  Action face is then squared off with single point tool as little as is required. Lug abutments are faced off, also as little as possible as to not throw off extraction.  Finally, action threads are SINGLE POINT CUT anywhere from 0.010-0.015″ deeper to make them completely concentric with bolt raceway.

Service also includes bolt truing when using a factory bolt.  This is simply cutting the bolt face perpendicular to the bolt body and facing the rear of the lugs slightly.

IMPORTANT: Unless specifically noted, services do not include the product to be altered. For instance, an action truing does not include an action and a barrel chambering does not include the cost of a barrel. These items are available for purchase, or can be shipped to Area 419 for service.

Weight 2 lbs
Dimensions 8 × 6 × 2 in
